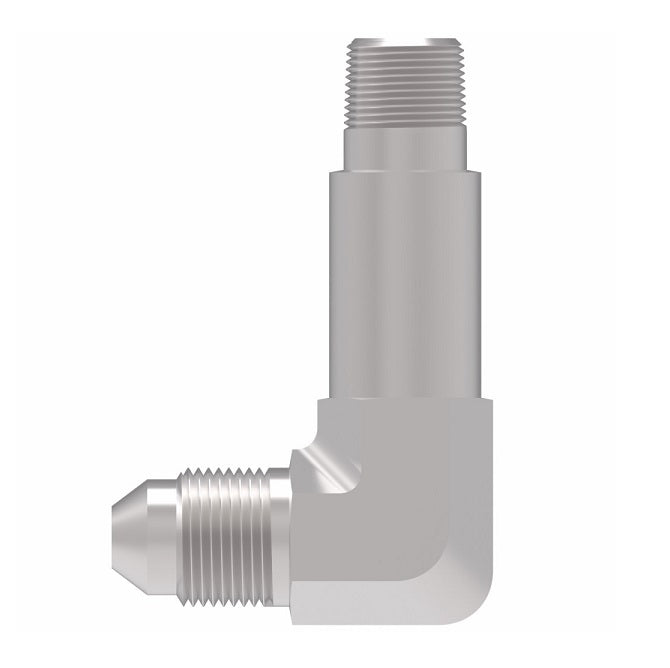

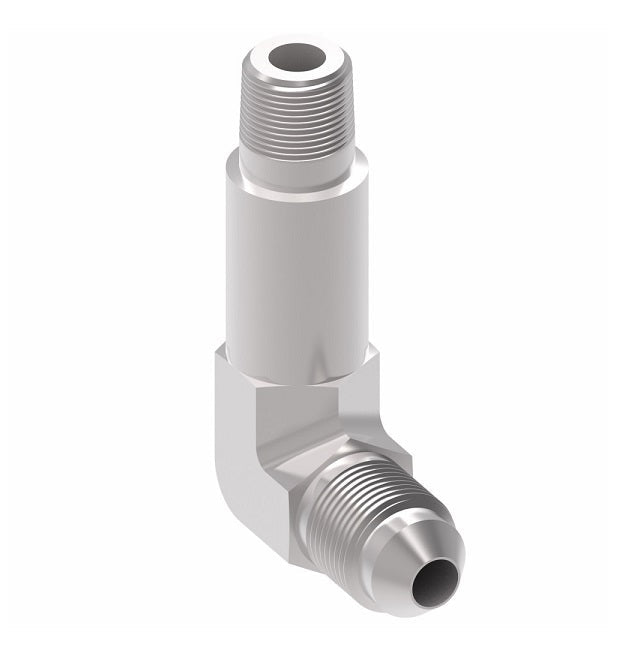

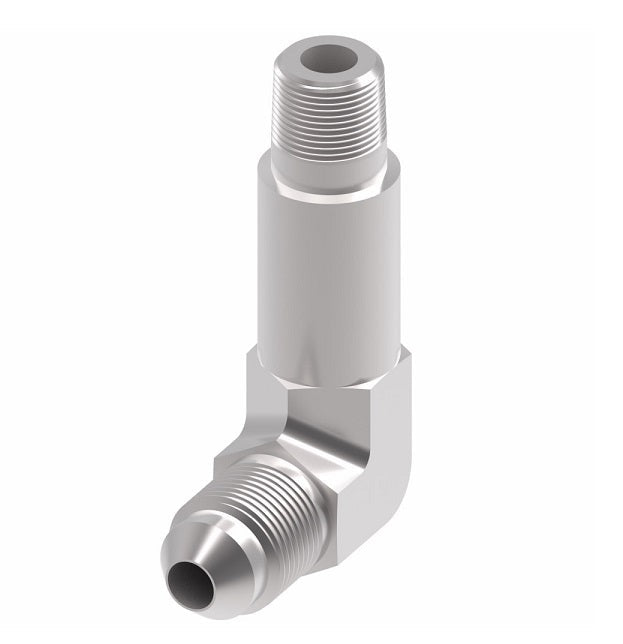

202414-8-10S Aeroquip by Danfoss | Extra Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel

202414-8-10S Aeroquip by Danfoss | Extra Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel

Name: 202414-8-10S Aeroquip by Danfoss | Extra Long External Pipe/37° JIC Flare 90° Elbow Adapter | -08 Male NPTF x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 202414-8-10S Danfoss
Price: 39.3 USD
Availability: InStock

$39.30 - $39.30

$39.30

$39.30 - $39.30

$39.30

Aeroquip® by Danfoss
Extra Long External Pipe/37° JIC Flare Adapter
Male NPTF x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 202414-8-10S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Male NPTF, 5/8in Male JIC
Material(s):	Steel
Special Properties:	Extra Long Drop


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
202414-2-4S	0.25"	1/8-27	7/16-20	2.31"	0.89"
202414-4-4S	0.25"	1/4-18	7/16-20	2.99"	0.97"
202414-4-6S	-	-	-	-	-
202414-8-10S	0.63"	1/2-14	7/8-14	4.51"	1.45"
