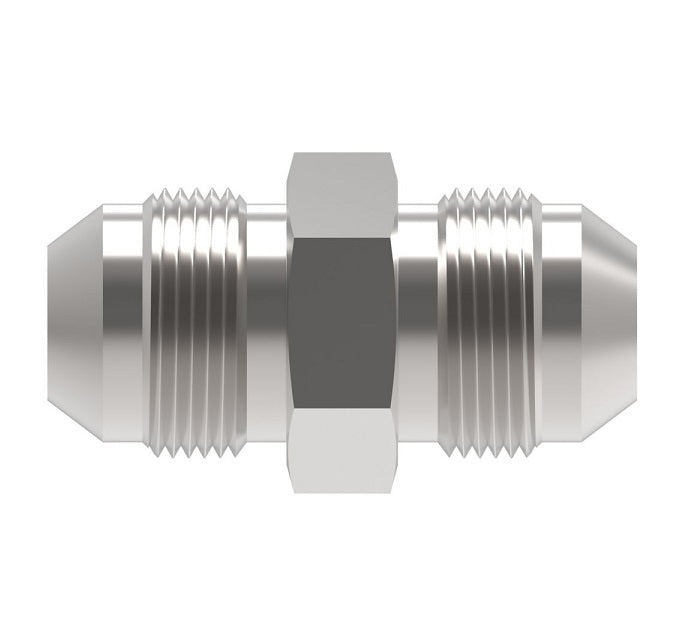

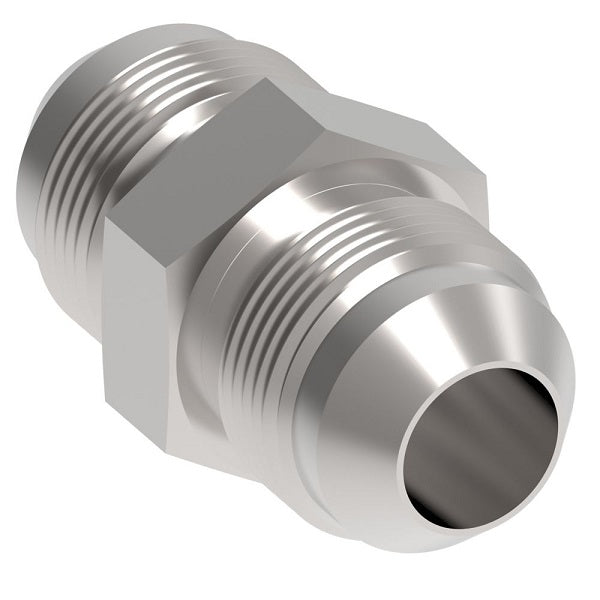

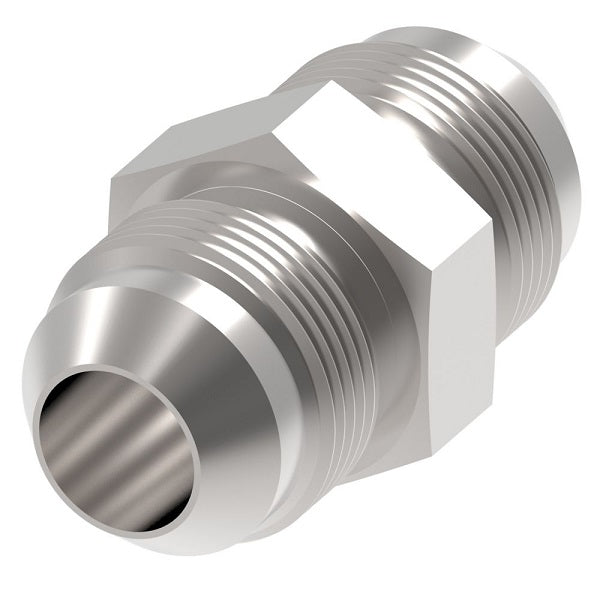

202712-10-10S Aeroquip by Danfoss | Male 37° JIC Flare Union (Large Hex) Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

202712-10-10S Aeroquip by Danfoss | Male 37° JIC Flare Union (Large Hex) Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel

Name: 202712-10-10S Aeroquip by Danfoss | Male 37° JIC Flare Union (Large Hex) Adapter | -10 Male 37° JIC Flare x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 202712-10-10S Danfoss
Price: 22.84 USD
Availability: InStock

$22.84 - $22.84

$22.84

$22.84 - $22.84

$22.84

Aeroquip® by Danfoss
Male 37° JIC Flare Union (Large Hex) Adapter
Male 37° JIC Flare x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 202712-10-10S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male JIC, 5/8in Male JIC
Material(s):	Steel

Specifications:
Ref. SAE 070119


Part Number Steel	Tube O.D.	Thread T1	Thread T2	A	B
202712-4-4S	0.25"	7/16-20	7/16-20	-	-
202712-6-4S	0.25"	9/16-18	7/16-20	1.40"	0.81"
202712-6-6S	0.38"	9/16-18	9/16-18	-	-
202712-8-8S	0.50"	3/4-16	3/4-16	1.62"	1.00"
202712-10-8S	0.50"	7/8-14	3/4-16	1.78"	1.12"
202712-10-10S	0.63"	7/8-14	7/8-14	1.88"	1.12"
202712-12-12S	0.75"	1-1/16-12	1-1/16-12	2.16"	1.38"
202712-16-16S	1.00"	1-5/16-12	1-5/16-12	2.25"	1.62"
202712-20-20S	1.25"	1-5/8-12	1-5/8-12	-	-
