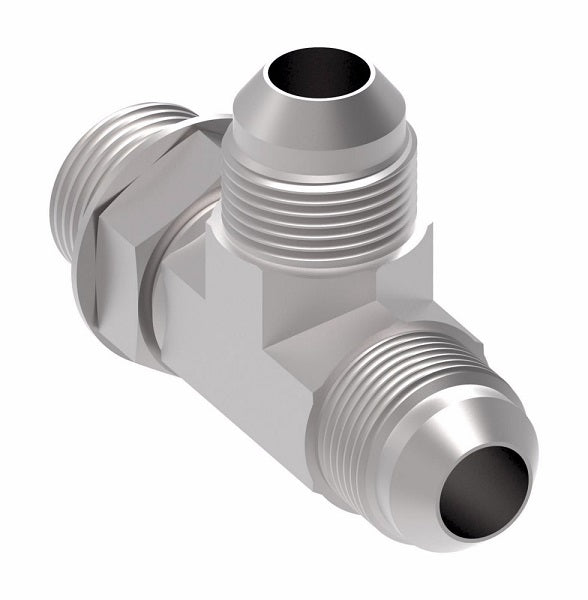

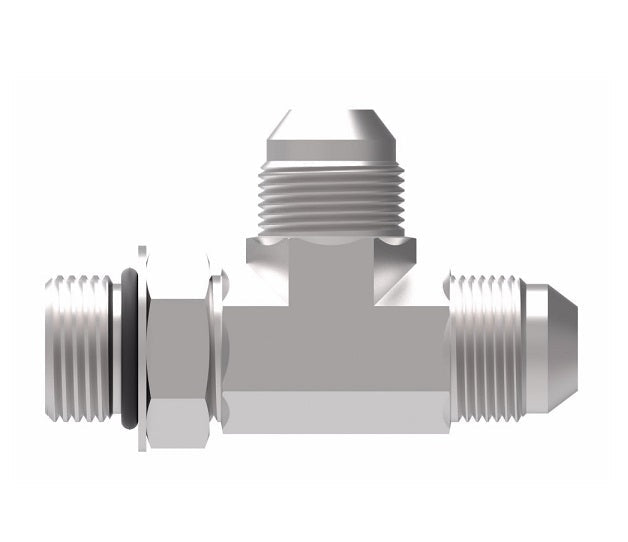

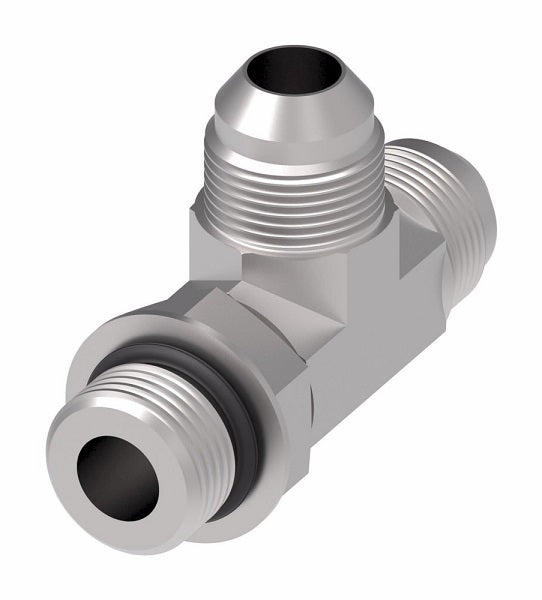

203005-4-4S Aeroquip by Danfoss | SAE ORB (adj.) Run/37° JIC Flare Tee Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
203005-4-4S Aeroquip by Danfoss | SAE ORB (adj.) Run/37° JIC Flare Tee Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
203005-4-4S Aeroquip by Danfoss | SAE ORB (adj.) Run/37° JIC Flare Tee Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel
203005-4-4S Aeroquip by Danfoss | SAE ORB (adj.) Run/37° JIC Flare Tee Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel

203005-4-4S Aeroquip by Danfoss | SAE ORB (adj.) Run/37° JIC Flare Tee Adapter | -04 Male SAE O-Ring Boss x -04 Male 37° JIC Flare x -04 Male 37° JIC Flare | Steel

$10.10 - $10.10
$10.10
$10.10 - $10.10
$10.10

Aeroquip® by Danfoss
SAE ORB (adj.) Run/37° JIC Flare Tee Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203005-4-4S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/4in Male O-Ring Boss, 1/4in Male JIC, 1/4in Male JIC
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Specifications:
  • Ref. SAE 070428
Part Number
Steel
Buna-N O-Ring		 Tube O.D. Thread T1 Thread T2 A B C
203005-4-4S 0.25" 7/16-20 7/16-20 1.03" 0.89" 0.89"
203005-6-4-4S 0.25" 9/16-18 7/16-20 1.25" 1.05" 1.05"
203005-6-6S 0.38" 9/16-18 9/16-18 1.25" 1.06" 1.06"
203005-8-8S 0.50" 3/4-16 3/4-16 1.45" 1.25" 1.25"
203005-10-10S 0.63" 7/8-14 7/8-14 1.70" 1.45" 1.45"
203005-12-12S 0.75" 1-1/16-12 1-1/16-12 1.94" 1.66" 1.66"
203005-12-16-16S 1.00" 1-1/16-12 1-5/16-12 2.05" 1.81" 1.81"
203005-16-16S 1.00" 1-5/16-12 1-5/16-12 2.05" 1.81" 1.81"
203005-20-20S 1.25" 1-5/8-12 1-5/8-12 2.25" 2.06" 2.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
