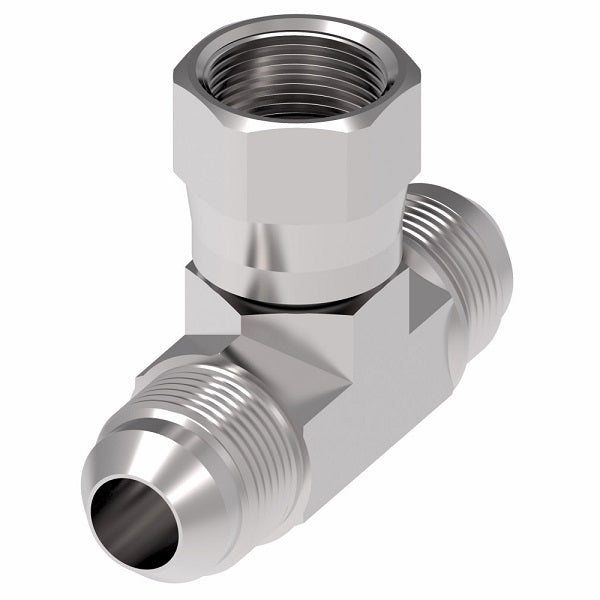

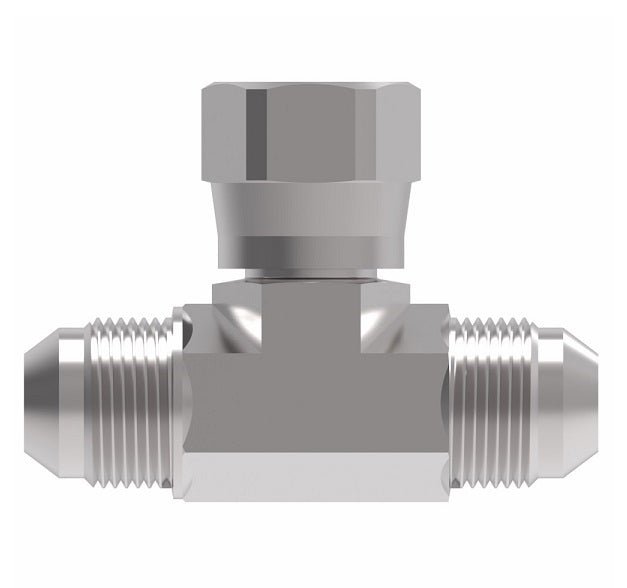

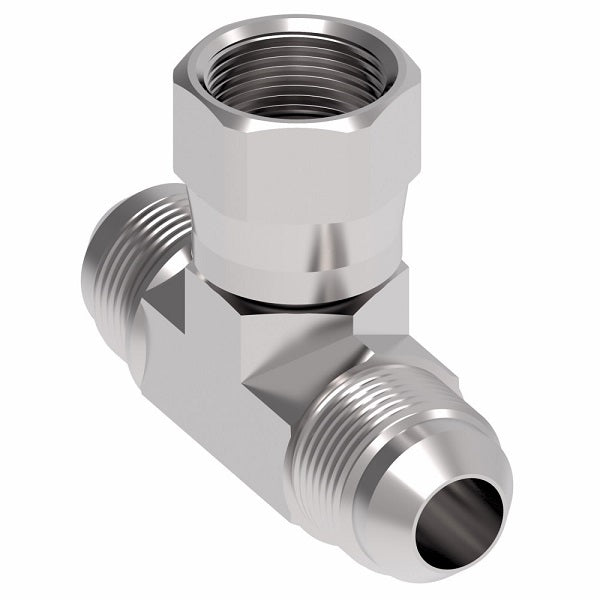

203101-12-12S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -12 Female 37° JIC Flare Swivel x -12 Male 37° JIC Flare x -12 Male 37° JIC Flare | Steel

Original price $20.89 - Original price $20.89
Original price
$20.89
$20.89 - $20.89
Current price $20.89

Aeroquip® by Danfoss
Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 203101-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Female JIC, 3/4in Male JIC, 3/4in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070433
Part Number
Steel
Tube O.D. Thread T Thread T2 Thread T3 A B
203101-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.66" 0.89"
203101-6-6S 0.38" 9/16-18 9/16-18 9/16-18 0.88" 1.06"
203101-8-8S 0.50" 3/4-16 3/4-16 3/4-16 0.96" 1.25"
203101-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.12" 1.45"
203101-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.18" 1.66"
203101-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.40" 1.81"
203101-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 1.68" 2.06"
