203101-8-8S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel
203101-8-8S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel
203101-8-8S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel
203101-8-8S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel

203101-8-8S Aeroquip by Danfoss | Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter | -08 Female 37° JIC Flare Swivel x -08 Male 37° JIC Flare x -08 Male 37° JIC Flare | Steel

$11.32 - $11.32
$11.32
$11.32 - $11.32
$11.32

Aeroquip® by Danfoss

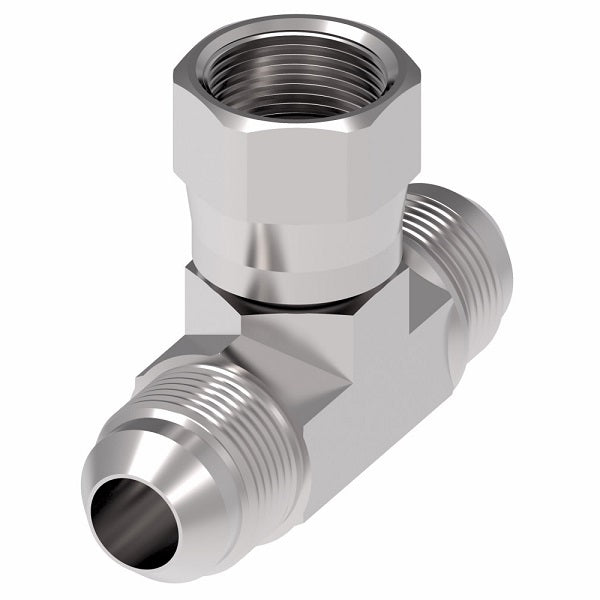

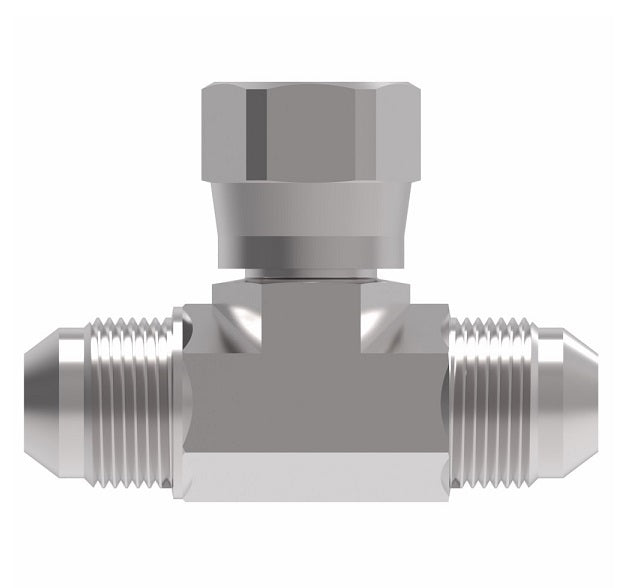

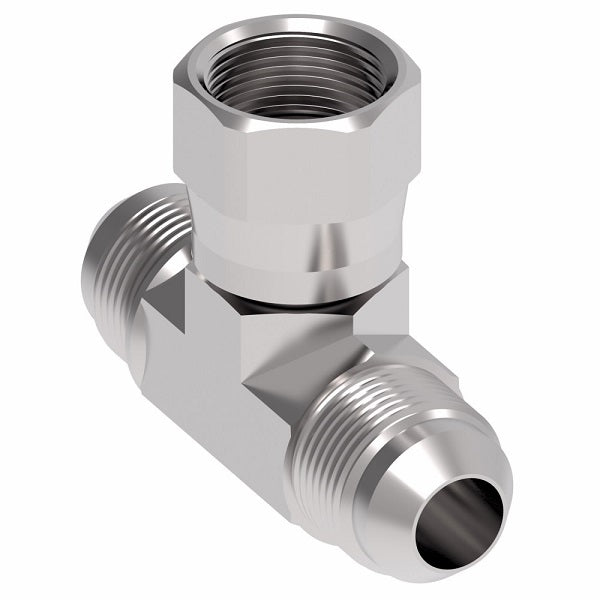

Female 37° JIC Flare Swivel Branch/Male 37° JIC Flare Tee Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203101-8-8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Female JIC, 1/2in Male JIC, 1/2in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070433
Part Number
Steel		 Tube O.D. Thread T Thread T2 Thread T3 A B
203101-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.66" 0.89"
203101-6-6S 0.38" 9/16-18 9/16-18 9/16-18 0.88" 1.06"
203101-8-8S 0.50" 3/4-16 3/4-16 3/4-16 0.96" 1.25"
203101-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.12" 1.45"
203101-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.18" 1.66"
203101-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.40" 1.81"
203101-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 1.68" 2.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
