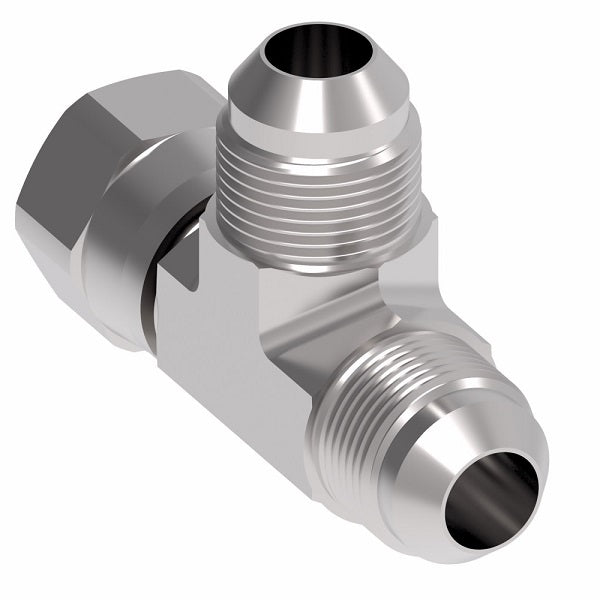

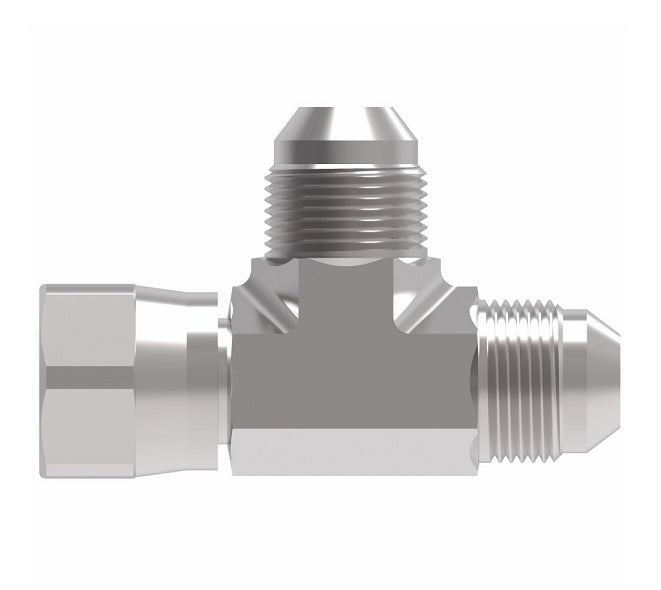

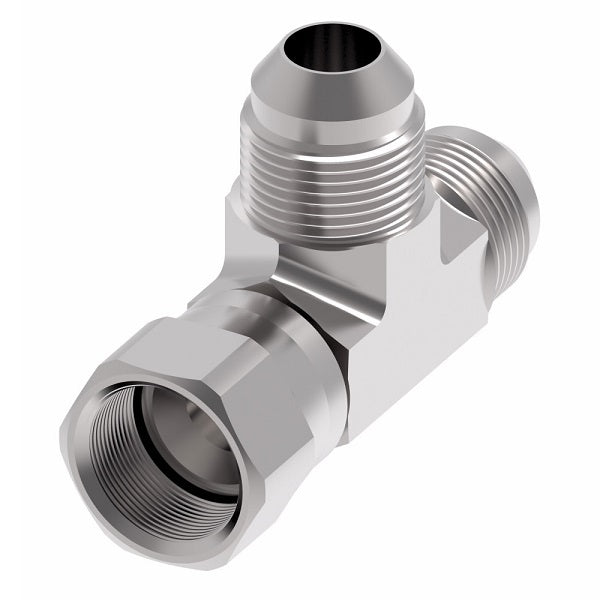

203102-20-20S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -20 Female 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
203102-20-20S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -20 Female 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
203102-20-20S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -20 Female 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
203102-20-20S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -20 Female 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel

203102-20-20S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -20 Female 37° JIC Flare x -20 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel

$73.04 - $73.04
$73.04
$73.04 - $73.04
$73.04

Aeroquip® by Danfoss
Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter
Female 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203102-20-20S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1-1/4in Female JIC, 1-1/4in Male JIC, 1-1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070432
Part Number
Steel		 Tube O.D. Thread T Thread T2 Thread T3 A B C
203102-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.66" 0.89" 0.89"
203102-5-5S 0.31" 1/2-20 1/2-20 1/2-20 0.69" 0.95" 0.95"
203102-6-6S 0.38" 9/16-18 9/16-18 9/16-18 0.88" 1.06" 1.06"
203102-8-8S 0.50" 3/4-16 3/4-16 3/4-16 0.96" 1.25" 1.25"
203102-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.12" 1.45" 1.45"
203102-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.19" 1.66" 1.66"
203102-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.41" 1.81" 1.81"
203102-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 1.68" 2.06" 2.06"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
