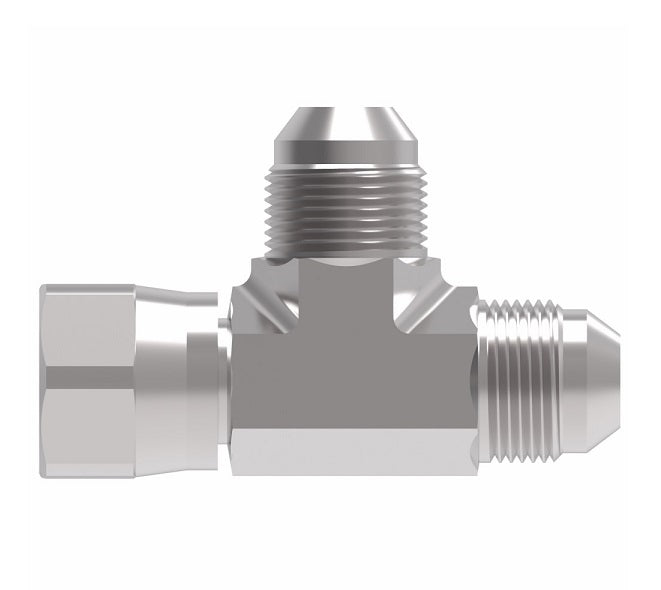

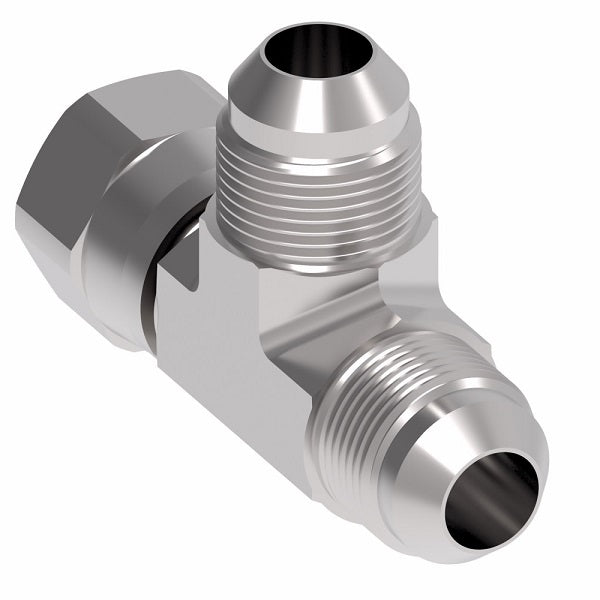

203102-5-5S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -05 Female 37° JIC Flare x -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
203102-5-5S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -05 Female 37° JIC Flare x -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
203102-5-5S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -05 Female 37° JIC Flare x -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel
203102-5-5S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -05 Female 37° JIC Flare x -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel

203102-5-5S Aeroquip by Danfoss | Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter | -05 Female 37° JIC Flare x -05 Male 37° JIC Flare x -05 Male 37° JIC Flare | Steel

$20.24 - $20.24
$20.24
$20.24 - $20.24
$20.24

Aeroquip® by Danfoss
Female 37° JIC Flare Run/Male 37° JIC Flare Tee Adapter
Female 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203102-5-5S Danfoss
Shape (Orientation): Tee
Ends Configuration: 5/16in Female JIC, 5/16in Male JIC, 5/16in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070432
Part Number
Steel		 Tube O.D. Thread T Thread T2 Thread T3 A B C
203102-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.66" 0.89" 0.89"
203102-5-5S 0.31" 1/2-20 1/2-20 1/2-20 0.69" 0.95" 0.95"
203102-6-6S 0.38" 9/16-18 9/16-18 9/16-18 0.88" 1.06" 1.06"
203102-8-8S 0.50" 3/4-16 3/4-16 3/4-16 0.96" 1.25" 1.25"
203102-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.12" 1.45" 1.45"
203102-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.19" 1.66" 1.66"
203102-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.41" 1.81" 1.81"
203102-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 1.68" 2.06" 2.06"
