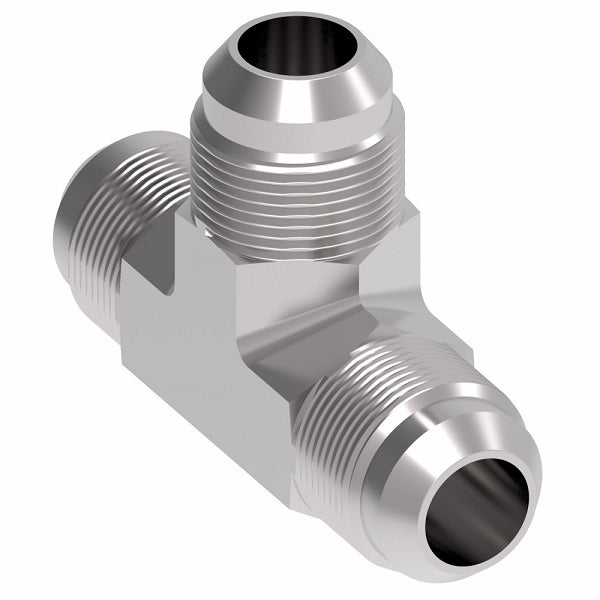

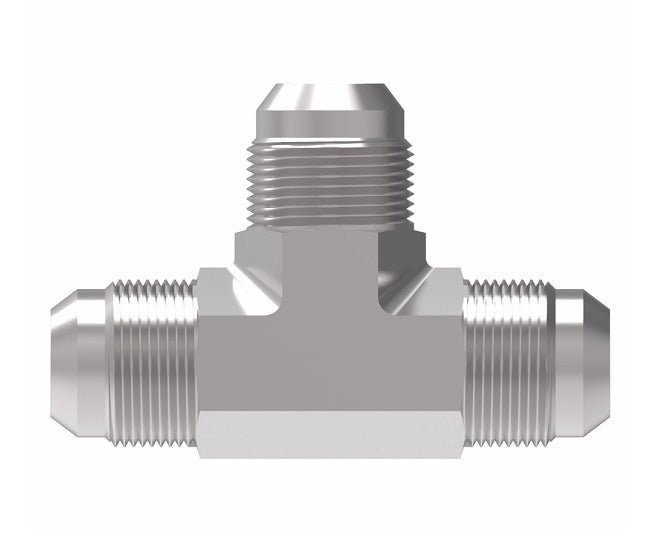

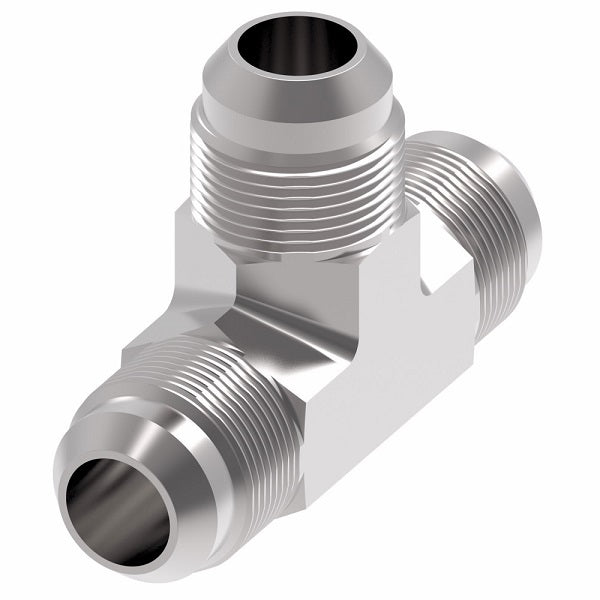

2033-12-12-16S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel
2033-12-12-16S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel
2033-12-12-16S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel
2033-12-12-16S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel

2033-12-12-16S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -12 Male 37° JIC Flare x -12 Male 37° JIC Flare x -16 Male 37° JIC Flare | Steel

$52.23 - $52.23
$52.23
$52.23 - $52.23
$52.23

Aeroquip® by Danfoss
Male 37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2033-12-12-16S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male JIC, 3/4in Male JIC, 1in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070401
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 Thread T3 A B
2033-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.89" 1.78"
2033-5-5S 0.31" 1/2-20 1/2-20 1/2-20 0.95" 1.90"
2033-6-6S 0.38" 9/16-18 9/16-18 9/16-18 1.06" 2.12"
2033-8-6-6S 0.38" 3/4-16 9/16-18 9/16-18 1.25" 2.28"
2033-8-8S 0.50" 3/4-16 3/4-16 3/4-16 1.25" 2.50"
2033-8-12-12S 0.75" 3/4-16 1 1/16-12 1 1/16-12 1.42" 3.32"
2033-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.45" 2.90"
2033-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.66" 3.32"
2033-12-12-16S 0.75" 1-1/16-12 1-1/16-12 1-5/16-12 1.76" 3.65"
2033-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.81" 3.62"
2033-16-16-20S 1.25" 1-5/16-12 1-5/16-12 1-5/8-12 2.00" 4.06"
2033-20-16-16S 1.00" 1-5/8-12 1-5/16-12 1-5/16-12 2.06" 4.02"
2033-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 2.06" 4.12"
2033-24-24S 1.50" 1-7/8-12 1-7/8-12 1-7/8-12 2.33" 4.66"
