2033-16-16-20S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
2033-16-16-20S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
2033-16-16-20S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel
2033-16-16-20S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel

2033-16-16-20S Aeroquip by Danfoss | Male 37° JIC Flare Tee Adapter | -16 Male 37° JIC Flare x -16 Male 37° JIC Flare x -20 Male 37° JIC Flare | Steel

$131.50 - $131.50
$131.50
$131.50 - $131.50
$131.50

Aeroquip® by Danfoss

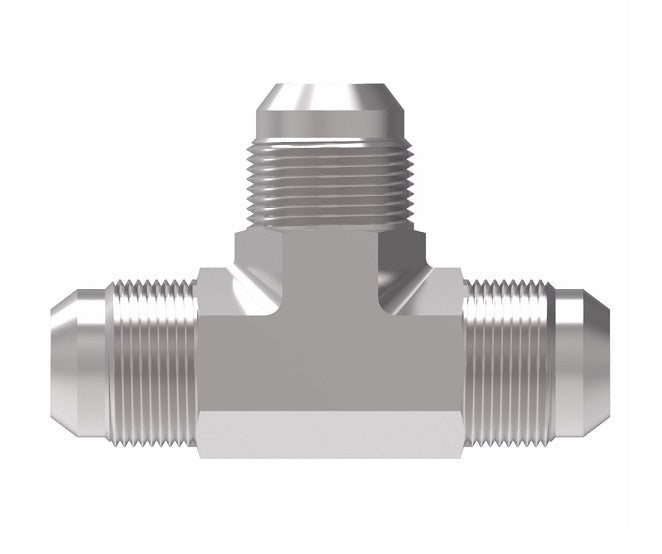

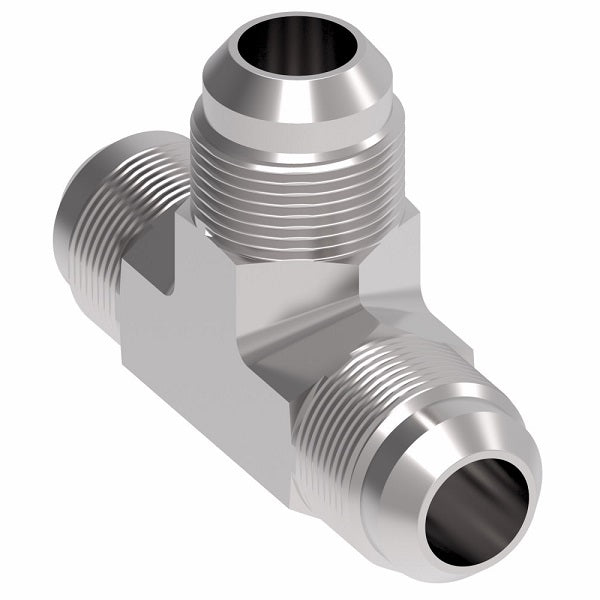

Male 37° JIC Flare Tee Adapter
Male 37° JIC Flare x Male 37° JIC Flare x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2033-16-16-20S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1in Male JIC, 1in Male JIC, 1-1/4in Male JIC
Material(s): Steel
Specifications:
  • Ref. SAE 070401
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 Thread T3 A B
2033-4-4S 0.25" 7/16-20 7/16-20 7/16-20 0.89" 1.78"
2033-5-5S 0.31" 1/2-20 1/2-20 1/2-20 0.95" 1.90"
2033-6-6S 0.38" 9/16-18 9/16-18 9/16-18 1.06" 2.12"
2033-8-6-6S 0.38" 3/4-16 9/16-18 9/16-18 1.25" 2.28"
2033-8-8S 0.50" 3/4-16 3/4-16 3/4-16 1.25" 2.50"
2033-8-12-12S 0.75" 3/4-16 1 1/16-12 1 1/16-12 1.42" 3.32"
2033-10-10S 0.63" 7/8-14 7/8-14 7/8-14 1.45" 2.90"
2033-12-12S 0.75" 1-1/16-12 1-1/16-12 1-1/16-12 1.66" 3.32"
2033-12-12-16S 0.75" 1-1/16-12 1-1/16-12 1-5/16-12 1.76" 3.65"
2033-16-16S 1.00" 1-5/16-12 1-5/16-12 1-5/16-12 1.81" 3.62"
2033-16-16-20S 1.25" 1-5/16-12 1-5/16-12 1-5/8-12 2.00" 4.06"
2033-20-16-16S 1.00" 1-5/8-12 1-5/16-12 1-5/16-12 2.06" 4.02"
2033-20-20S 1.25" 1-5/8-12 1-5/8-12 1-5/8-12 2.06" 4.12"
2033-24-24S 1.50" 1-7/8-12 1-7/8-12 1-7/8-12 2.33" 4.66"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
