203301-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Male 37° JIC Flare | Steel
203301-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Male 37° JIC Flare | Steel
203301-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Male 37° JIC Flare | Steel
203301-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Male 37° JIC Flare | Steel

203301-12-12S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -12 Male NPTF x -12 Female NPTF x -12 Male 37° JIC Flare | Steel

$60.45 - $60.45
$60.45
$60.45 - $60.45
$60.45

Aeroquip® by Danfoss

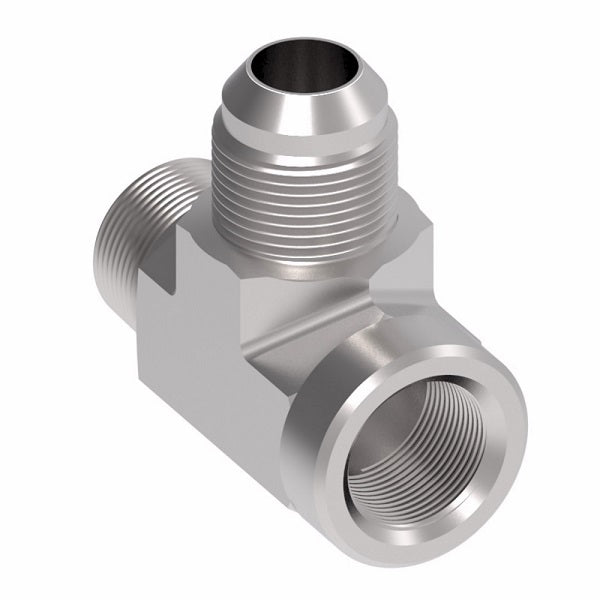

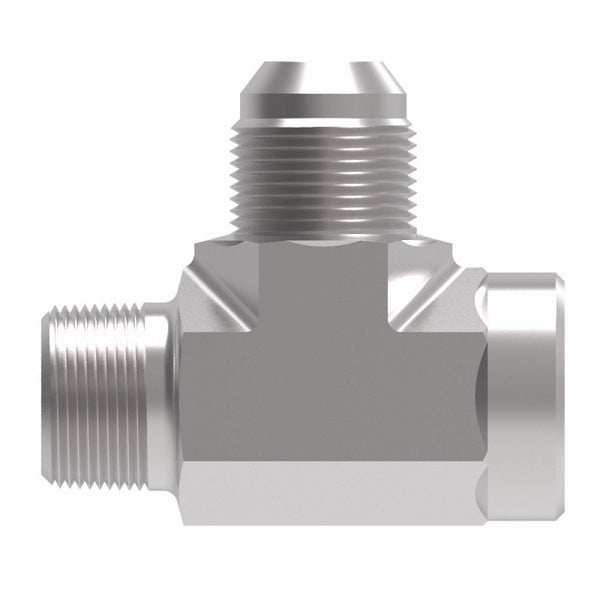

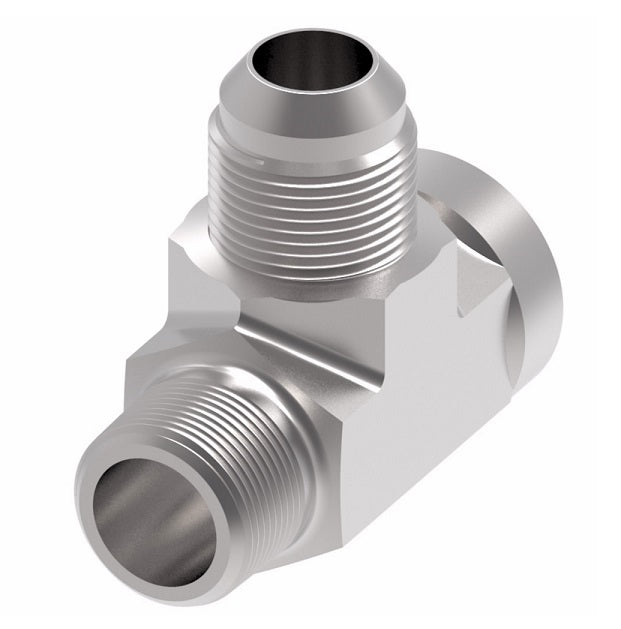

External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter
Male NPTF x Female NPTF x Male 37° JIC Flare

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 203301-12-12S Danfoss
Shape (Orientation): Tee
Ends Configuration: 3/4in Male NPTF, 3/4in Female NPTF, 3/4in Male JIC
Material(s): Steel
Part Number
Steel		 Tube O.D. Thread P Thread T A B C
203301-2-4S 0.25" 1/8-27 7/16-20 0.78" 0.66" 1.08"
203301-4-6S 0.38" 1/4-18 9/16-18 1.09" 0.88" 1.23"
203301-6-8S 0.50" 3/8-18 3/4-16 1.22" 1.02" 1.42"
203301-8-10S 0.63" 1/2-14 7/8-14 1.47" 1.23" 1.64"
203301-12-12S 0.75" 3/4-14 1-1/16-12 1.59" 1.36" 1.89"
203301-16-16S 1.00" 1-11-1/2 1-5/16-12 1.97" 1.62" 2.17"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
