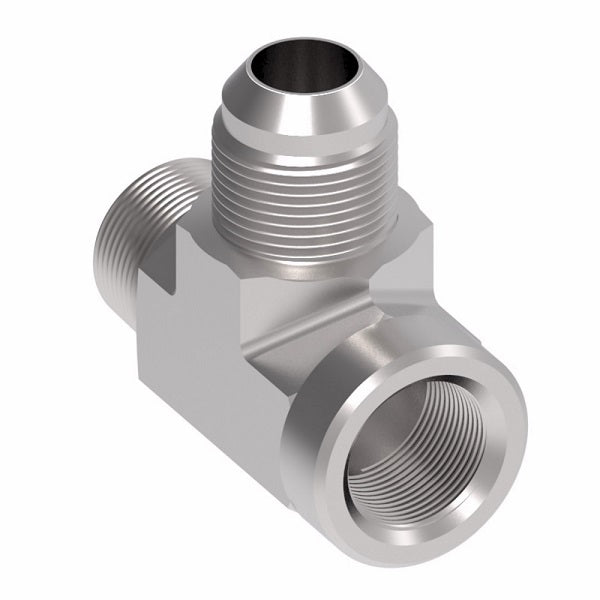

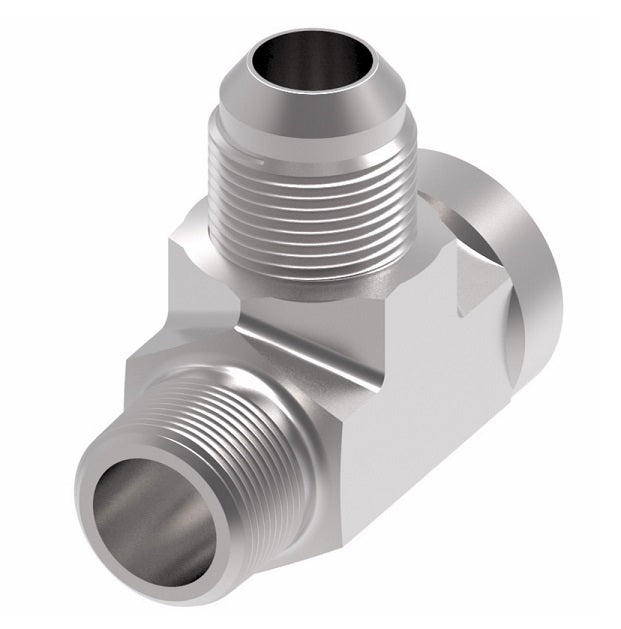

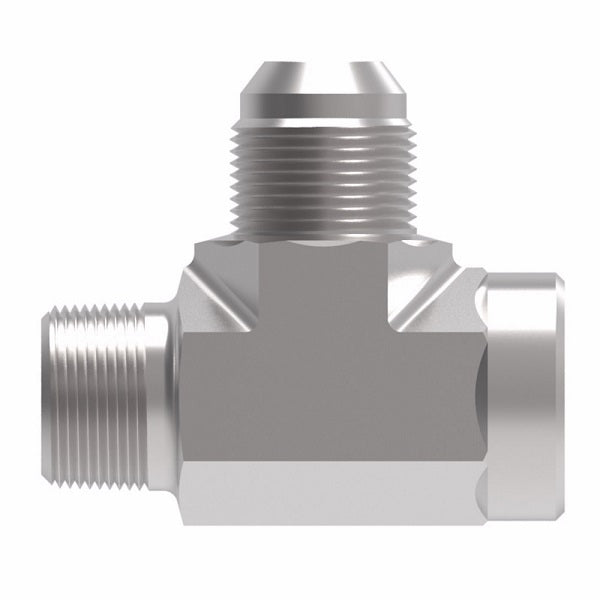

203301-2-4S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -02 Male NPTF x -02 Female NPTF x -04 Male 37° JIC Flare | Steel

203301-2-4S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -02 Male NPTF x -02 Female NPTF x -04 Male 37° JIC Flare | Steel

Name: 203301-2-4S Aeroquip by Danfoss | External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter | -02 Male NPTF x -02 Female NPTF x -04 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 203301-2-4S Danfoss
Price: 19.42 USD
Availability: InStock

$19.42 - $19.42

$19.42

$19.42 - $19.42

$19.42

Aeroquip® by Danfoss
External Pipe/Internal Pipe/37° JIC Flare Branch Tee Adapter
Male NPTF x Female NPTF x Male 37° JIC Flare

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 203301-2-4S Danfoss
Shape (Orientation):	Tee
Ends Configuration:	1/8in Male NPTF, 1/8in Female NPTF, 1/4in Male JIC
Material(s):	Steel


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B	C
203301-2-4S	0.25"	1/8-27	7/16-20	0.78"	0.66"	1.08"
203301-4-6S	0.38"	1/4-18	9/16-18	1.09"	0.88"	1.23"
203301-6-8S	0.50"	3/8-18	3/4-16	1.22"	1.02"	1.42"
203301-8-10S	0.63"	1/2-14	7/8-14	1.47"	1.23"	1.64"
203301-12-12S	0.75"	3/4-14	1-1/16-12	1.59"	1.36"	1.89"
203301-16-16S	1.00"	1-11-1/2	1-5/16-12	1.97"	1.62"	2.17"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
