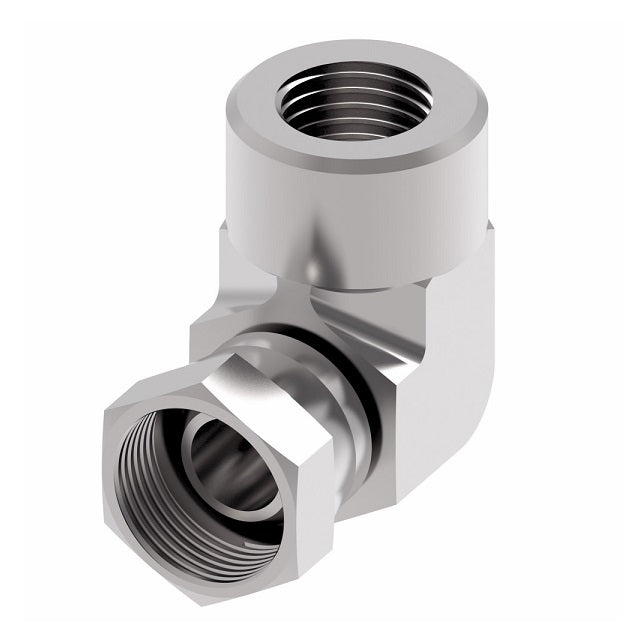

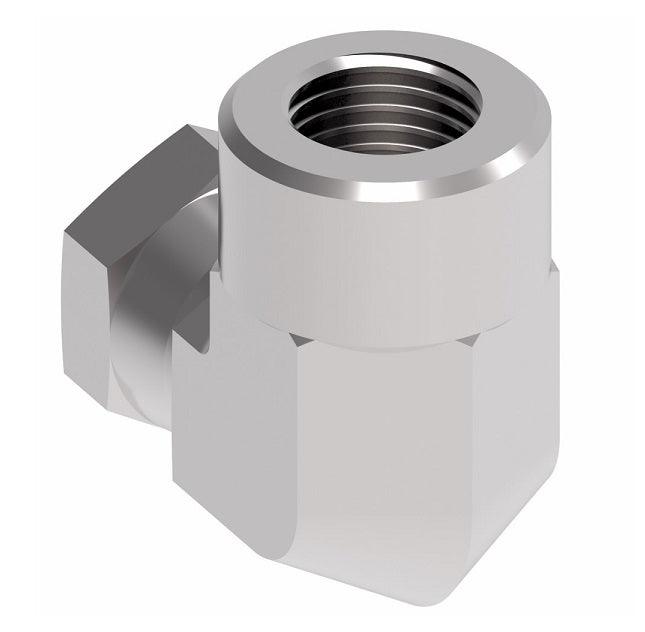

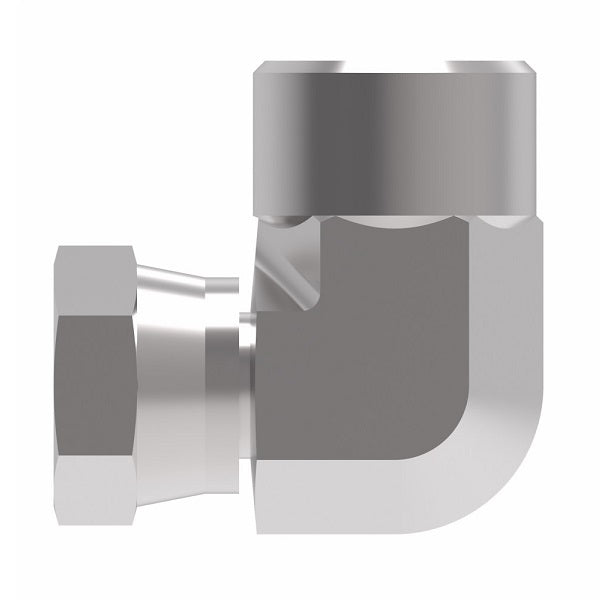

2048-4-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -04 Female NPSM x -04 Female NPTF | Steel
2048-4-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -04 Female NPSM x -04 Female NPTF | Steel
2048-4-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -04 Female NPSM x -04 Female NPTF | Steel
2048-4-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -04 Female NPSM x -04 Female NPTF | Steel

2048-4-4S Aeroquip by Danfoss | Internal Pipe Swivel (NPSM)/Internal Pipe 90° Elbow Adapter | -04 Female NPSM x -04 Female NPTF | Steel

$26.58 - $26.58
$26.58
$26.58 - $26.58
$26.58

Aeroquip® by Danfoss
Internal Pipe Swivel (NPSM)/internal Pipe
Female NPSM x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2048-4-4S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Female NPSM, 1/4in Female NPTF
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 140231
Steel Part Number Thread P1 Thread P2 A B
2048-2-2S 1/8-27 1/8-27 0.78" 0.66"
2048-4-4S 1/4-18 1/4-18 0.91" 1.00"
2048-4-6S 1/4-18 3/8-18 1.00" 1.09"
2048-4-8S 1/4-18 1/2-14 - -
2048-6-4S 3/8-18 1/4-18 0.97" 0.97"
2048-6-6S 3/8-18 3/8-18 1.09" 1.09"
2048-6-8S 3/8-18 1/2-14 1.10" 1.34"
2048-8-6S 1/2-14 3/8-18 1.08" 1.34"
2048-8-8S 1/2-14 1/2-14 1.08" 1.34"
2048-12-8S 3/4-14 1/2-14 - -
2048-12-12S 3/4-14 3/4-14 1.36" 1.53"
2048-16-16S 1-11-1/2 1-11-1/2 1.56" 1.78"
2048-20-20S 1-1/4-11-1/2 1-1/4-11-1/2 1.82" 2.03"
2048-24-24S 1-1/2-11-1/2 1-1/2-11-1/2 2.02" 2.28"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
