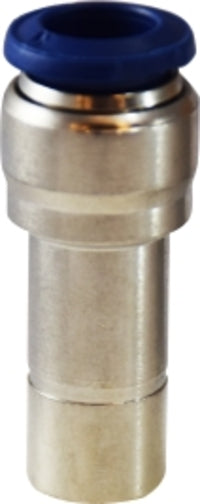

20510N (20-510N) Midland Push-In Fitting - Reducer - 1/4" Tube OD x 1/8" Tube OD - Nickel Plated Brass

20510N by Midland | Push-In Fitting | Reducer | 1/4" Tube OD x 1/8" Tube OD | Nickel Plated Brass

Save $0.50 Save $0.50
$4.51
$4.51 - $4.51
$4.51
$4.01
$4.01 - $4.01
$4.01

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Reducer
Specifications for Variant SKU: 20510N Midland
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/8in Push-to-Connect
Material(s): Nickel Plated Brass
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Component Parts and Materials:
Body Brass - Nickel Plated
Thrust Ring Acetalic Resin/ Glass filled Nylon
Sleeve Brass - Nickel Plated
Gripper Collet Stainless Steel
Safety Ring PA66
Lip Seal (1/8" O-Ring Seal) NBR 70
Thread Seal NBR 70
Crossover Series:
67PPL 88700
Part Number Tube O.D. 2 Tube O.D. 1 A
20510N
(20-510N)		 1/4" 1/8" 1.142"
20511N
(20-511N)		 1/4" 5/32" 1.181"
20512N
(20-512N)		 3/8" 1/4" 1.496"
20513N
(20-513N)		 1/2" 1/4" 1.693"
20514N
(20-514N)		 1/2" 3/8" 1.693"

Dimension data can change without notice.
