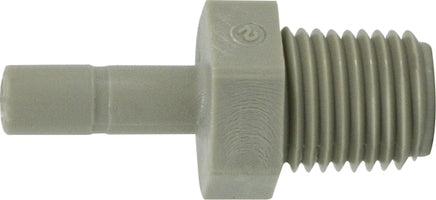

20529P (20-529P) Midland Push-In Tube Fitting - Stem Adapter - 3/8" Stem OD x 3/8" Male NPTF - Plastic

20529P by Midland | Push-In Tube Fitting | 3/8" Stem OD x 3/8" Male NPTF | Adapter | Plastic

Save $0.27 Save $0.27
$1.74
$1.74 - $1.74
$1.74
$1.47
$1.47 - $1.47
$1.47

Midland Industries
Plastic Push-in Tube Fitting - Stem Adapter - Stem OD x Male NPTF - Plastic

Inventory @ Manufacturers Warehouse: 40 Units
Specifications for Variant SKU: 20529P Midland
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Stem, 3/8in Male NPTF
Material(s): POM
Applicable Specs & Approvals: Applicable FDA Requirements, Applicable WRAS Standards, NSF 51, NSF 61, SK Zert
Applications:
  • Widely used in water purification, food/beverage and pneumatic systems.
  • Beyond water and food use, fittings can be used with air, gases, vacuum, & liquids.
Features:
  • All connections can be assembled & disassembled repeatedly.
  • Function & Quality : Provides quick and convenient assembly - saving time & expense. The ISO9001, 14001 registered quality system ensures customers a superior level of product quality. Defects are easily detectable and maintenance is easy with its easy dismantling for access.
  • Collet Design : Unique oval collet design is superior and more practical.
Specifications:
  • Manufactured from safe, non-toxic materials meeting the requirements of the US FDA, WRAS, ANSI/NSF-51, 61, and SK Zert.
Materials:
  • Grey Acetal Copolymer, also known as POM. Highly durable and resistant to fatigue and creep. It has high resistance to a wide range of organic & inorganic chemicals and detergents. Not recommended for use with strong acids or repeated exposure to strong oxidizers. (polypropylene may be subbed)
Notes:
  • Fittings are not recommended for use with liquids other than water and food or beverage products.
  • Do not use pipe dope or other liquid thread sealers. Use only Teflon tape to seal threaded connections.
  • After assembling a tube connection, tug with moderate force to check for proper gripping of the tube.
  • Before disassembling tube connections, always verify that pressure has been removed from the system.
Pressure:
Part Number Stem OD Male Flare
20524P
(20-524P)		 1/4" 1/8"
20525P
(20-525P)		 1/4" 1/4"
20528P
(20-528P)		 3/8" 1/4"
20529P
(20-529P)		 3/8" 3/8"
