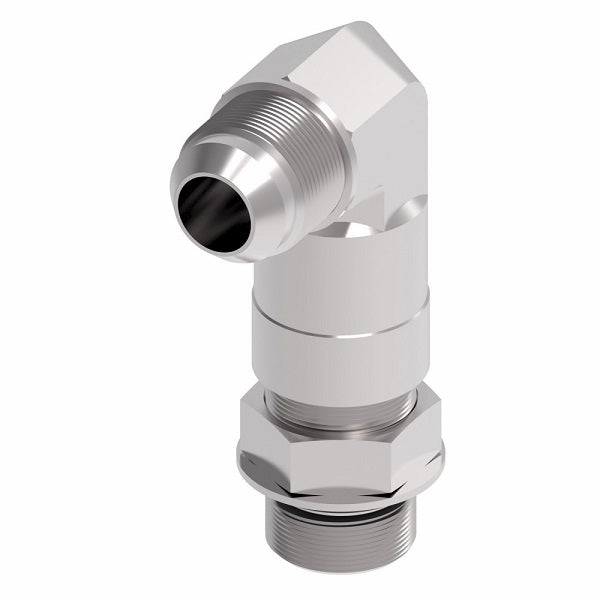

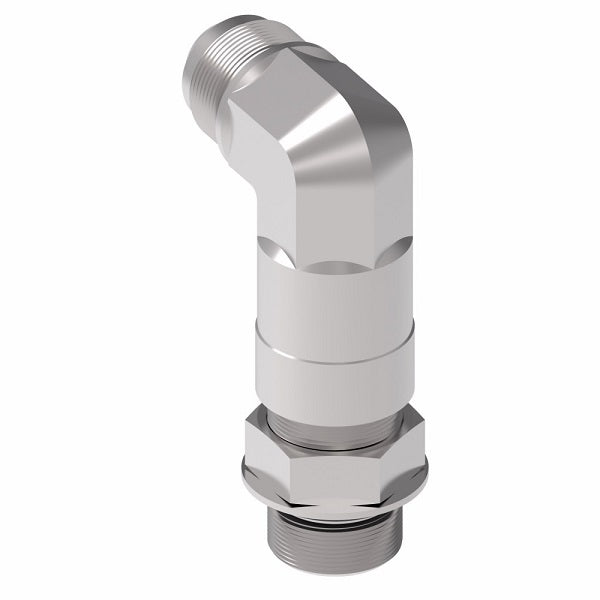

206209-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

206209-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel

Name: 206209-10-10S Aeroquip by Danfoss | SAE ORB (adj.)/37° JIC Flare Long 90° Elbow Adapter | -10 Male SAE O-Ring Boss x -10 Male 37° JIC Flare | Steel
Brand: Danfoss/Eaton
SKU: 206209-10-10S Danfoss
Price: 16.42 USD
Availability: InStock

$16.42 - $16.42

$16.42

$16.42 - $16.42

$16.42

Aeroquip® by Danfoss
SAE ORB (adj.)/37° JIC Flare Long Adapter
Male SAE O-Ring Boss x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: 206209-10-10S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Male O-Ring Boss, 5/8in Male JIC
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Long Drop


Part Number Steel Buna-N O-Ring	Tube O.D.	Thread T1	Thread T2	A	B
206209-4-4S	0.25"	7/16-20	7/16-20	1.73"	0.89"
206209-6-6S	0.38"	9/16-18	9/16-18	2.08"	1.06"
206209-8-8S	0.50"	3/4-16	3/4-16	2.48"	1.25"
206209-8-10S	0.63"	3/4-16	7/8-14	2.52"	1.45"
206209-10-10S	0.63"	7/8-14	7/8-14	2.89"	1.45"
206209-12-12S	0.75"	1-1/16-12	1-1/16-12	3.34"	1.66"
206209-16-16S	1.00"	1-5/16-12	1-5/16-12	3.72"	1.81"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
