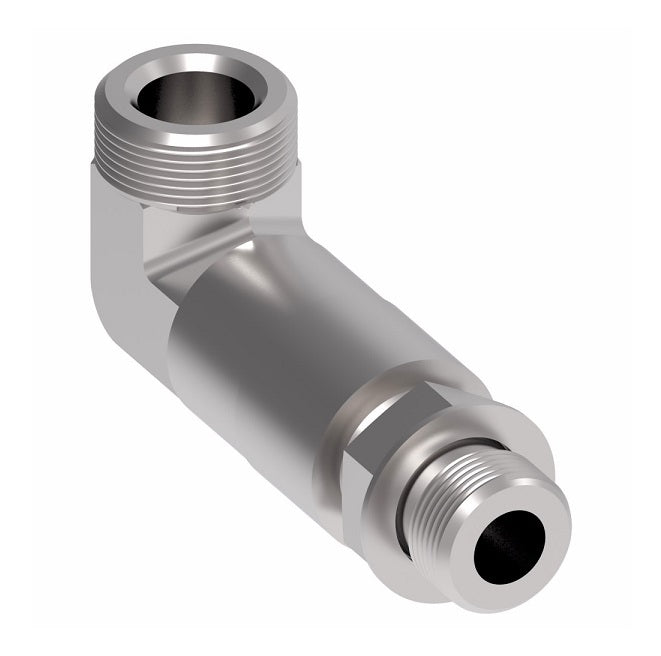

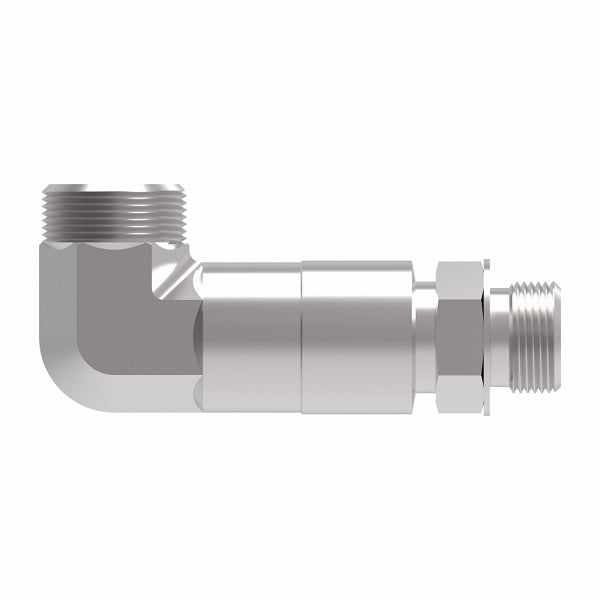

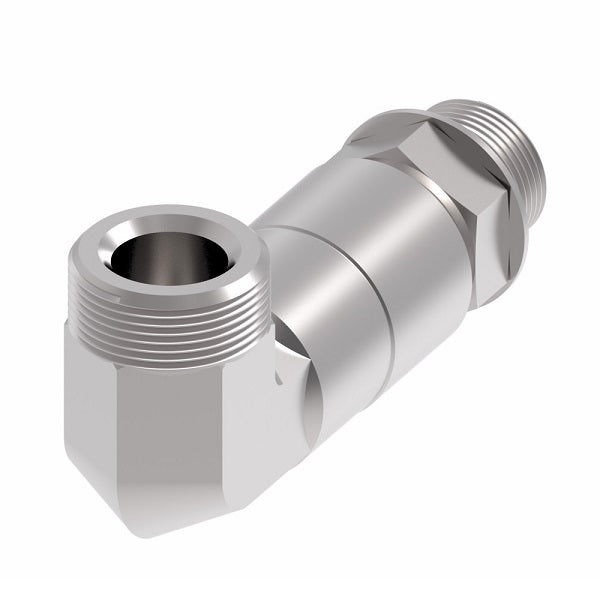

206804-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel
206804-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel
206804-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel
206804-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

206804-12-12S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -12 Female NPTF x -12 Male SAE O-Ring Boss | Steel

$104.98 - $104.98
$104.98
$104.98 - $104.98
$104.98

Aeroquip® by Danfoss
Internal Pipe/SAE ORB (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 206804-12-12S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female NPTF, 3/4in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
206804-6-8S 3/8-18 3/4-16 1.02" 2.97"
206804-8-10S 1/2-14 7/8-14 1.23" 3.56"
206804-12-12S 3/4-14 1-1/16-12 1.36" 4.12"
206804-16-16S 1-11-1/2 1-5/16-12 1.62" 4.64"
