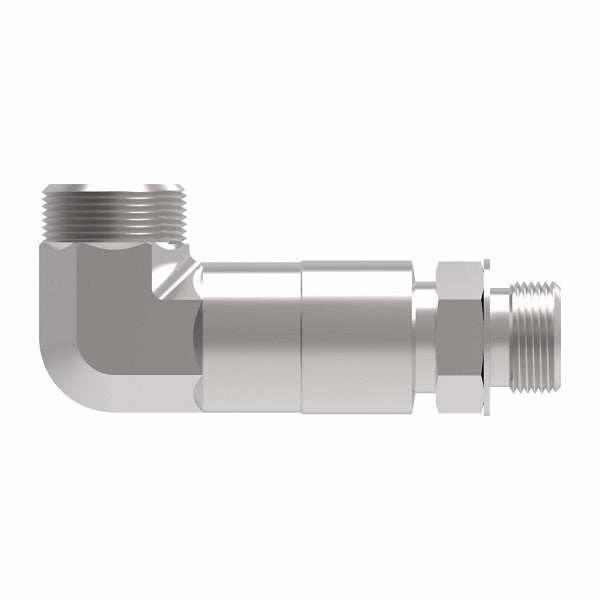

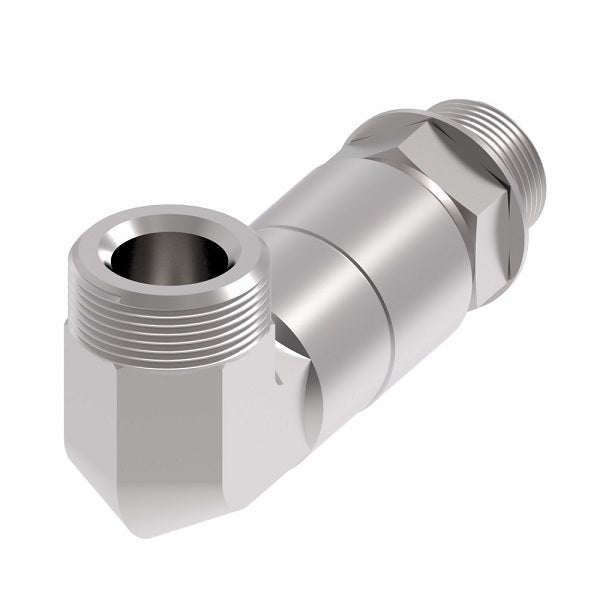

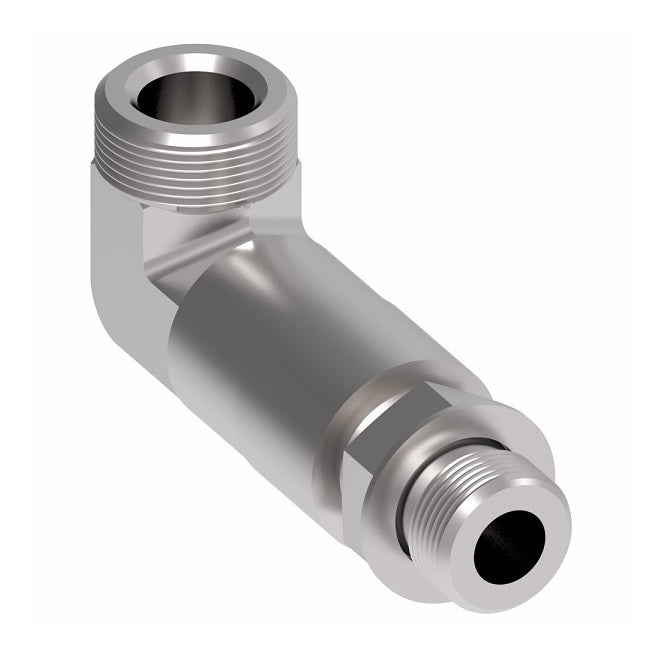

206804-16-16S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -16 Female NPTF x -16 Male SAE O-Ring Boss | Steel
206804-16-16S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -16 Female NPTF x -16 Male SAE O-Ring Boss | Steel
206804-16-16S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -16 Female NPTF x -16 Male SAE O-Ring Boss | Steel
206804-16-16S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -16 Female NPTF x -16 Male SAE O-Ring Boss | Steel

206804-16-16S Aeroquip by Danfoss | Internal Pipe/SAE ORB (Adj.) 90° Elbow Adapter | -16 Female NPTF x -16 Male SAE O-Ring Boss | Steel

$133.48 - $133.48
$133.48
$133.48 - $133.48
$133.48

Aeroquip® by Danfoss
Internal Pipe/SAE ORB (Adj.) Adapter
Female NPTF x Male SAE O-Ring Boss
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 206804-16-16S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female NPTF, 1in Male O-Ring Boss
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Buna-N O-Rings are standard.
Part Number
Steel
Buna-N O-Ring		 Thread P Thread T A B
206804-6-8S 3/8-18 3/4-16 1.02" 2.97"
206804-8-10S 1/2-14 7/8-14 1.23" 3.56"
206804-12-12S 3/4-14 1-1/16-12 1.36" 4.12"
206804-16-16S 1-11-1/2 1-5/16-12 1.62" 4.64"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
