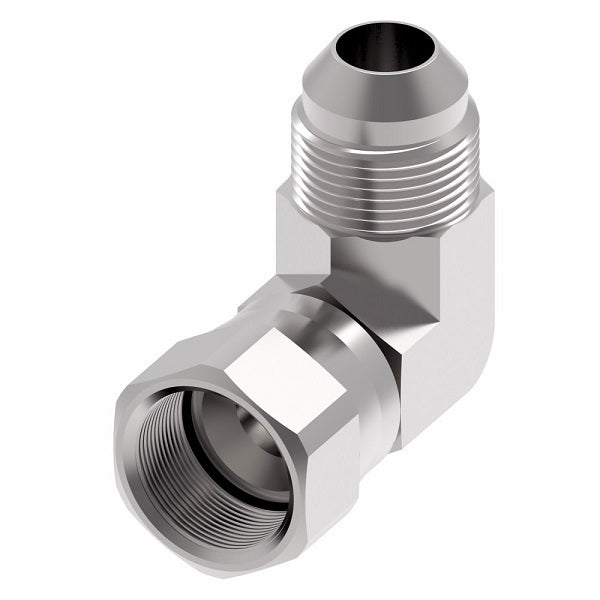

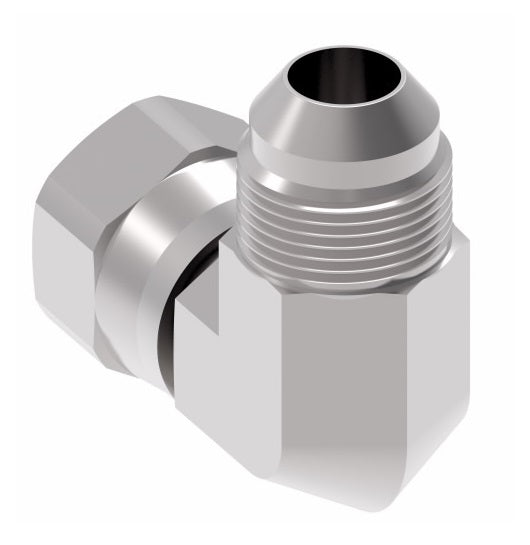

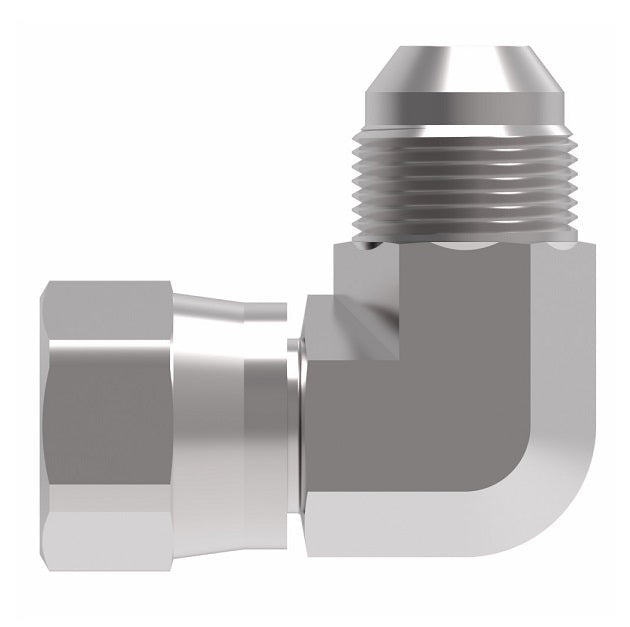

2071-10-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -10 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-10-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -10 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-10-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -10 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel
2071-10-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -10 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel

2071-10-10S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare 90° Elbow Adapter | -10 Female 37° JIC Flare Swivel x -10 Male 37° JIC Flare | Steel

$9.64 - $9.64
$9.64
$9.64 - $9.64
$9.64

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2071-10-10S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Female JIC, 5/8in Male JIC
Material(s): Steel
Special Properties: Swivel
Specifications:
  • Ref. SAE 070221
Part Number
Steel		 Tube O.D. Thread T1 Thread T2 A B
2071-4-4S 0.25" 7/16-20 7/16-20 0.66" 0.89"
2071-4-6S 0.38" 7/16-20 9/16-18 0.82" 1.06"
2071-5-5S 0.31" 1/2-20 1/2-20 0.68" 0.95"
2071-6-4S 0.25" 9/16-18 7/16-20 0.88" 1.05"
2071-6-6S 0.38" 9/16-18 9/16-18 0.88" 1.06"
2071-8-6S 0.38" 3/4-16 9/16-18 0.96" 1.14"
2071-8-8S 0.50" 3/4-16 3/4-16 0.96" 1.25"
2071-8-10S 0.63" 3/4-16 7/8-14 1.00" 1.45"
2071-10-8S 0.50" 7/8-14 3/4-16 1.12" 1.33"
2071-10-10S 0.63" 7/8-14 7/8-14 1.12" 1.45"
2071-12-12S 0.75" 1-1/16-12 1-1/16-12 1.19" 1.66"
2071-14-14S 0.88" 1-3/16-12 1-3/16-12 1.20" 1.80"
2071-16-16S 1.00" 1-5/16-12 1-5/16-12 1.41" 1.81"
2071-20-20S 1.25" 1-5/8-12 1-5/8-12 1.68" 2.06"
2071-24-24S 1.50" 1-7/8-12 1-7/8-12 1.86" 2.33"
2071-32-32S 2.00" 2-1/2-12 2-1/2-12 2.44" 3.06"
