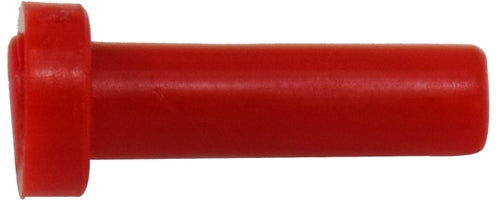

20753N (20-753N) Midland Push-In Fitting - Plug - 12mm Tube OD

20753N by Midland | Push-In Fitting | Plug | 12mm Tube OD

Save $0.14 Save $0.14
$1.22
$1.22 - $1.22
$1.22
$1.08
$1.08 - $1.08
$1.08

Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Plug

Inventory @ Manufacturers Warehouse: 34 Units
Specifications for Variant SKU: 20753N Midland
Ends Configuration: 12mm Push-to-Connect
Material(s): Plastic
Features:
  • Saves time and money
  • No stripped threads
  • No stripped parts
  • Reduce inventory
  • Completely reusable
  • Quick installation
  • No pitch identification
Specifications:
  • Tolerance: +/- .02 on all dimensions
  • Max Operating Pressure: Vacuum to 290PSI
  • Min Temperature: -4°F
  • Max Temperature: 176°F
  • Tubing: Nylon, Polyethylene, Polyurethane. For best results use 95 Durometer
  • Media: Compressed air, water, vacuum
Part Number Tube O.D.
(mm)		 A
20748N
(20-748N)		 4mm 0.917"
20749N
(20-749N)		 5mm 0.956"
20750N
(20-750N)		 6mm 0.956"
20751N
(20-751N)		 8mm 1.014"
20752N
(20-752N)		 10mm 1.112"
20753N
(20-753N)		 12mm 1.190"

Dimension data can change without notice.

Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
