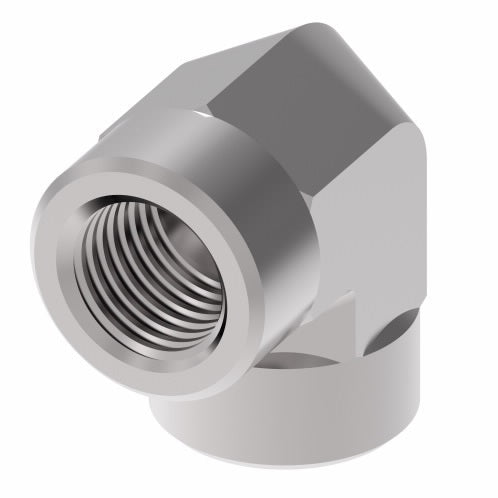

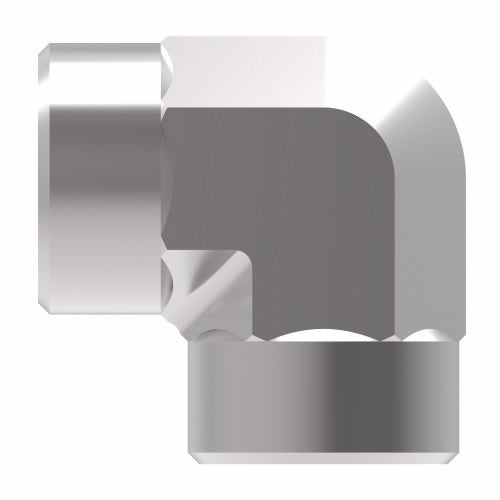

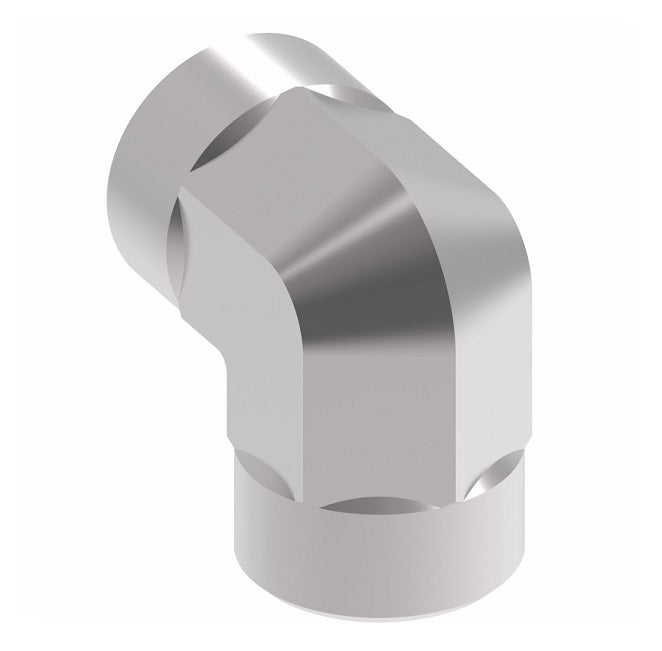

2087-2-2S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -02 Female NPTF x -02 Female NPTF | Steel

2087-2-2S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -02 Female NPTF x -02 Female NPTF | Steel

Name: 2087-2-2S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -02 Female NPTF x -02 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2087-2-2S Danfoss
Price: 5.65 USD
Availability: InStock

$5.65 - $5.65

$5.65

$5.65 - $5.65

$5.65

Aeroquip® by Danfoss
Internal Pipe/Internal Pipe Adapter
Female NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2087-2-2S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/8in Female NPTF, 1/8in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140238


Steel Part Number	Stainless Steel Part Number	Thread P1	Thread P2	A	B
2087-2-2S	-	1/8-27	1/8-27	0.66"	0.66"
2087-4-2S	-	1/4-18	1/8-27	0.88"	0.67"
2087-4-4S	-	1/4-18	1/4-18	0.88"	0.88"
2087-6-4S	-	3/8-18	1/4-18	1.02"	1.01"
2087-6-6S	-	3/8-18	3/8-18	1.02"	1.02"
2087-8-6S	-	1/2-14	3/8-18	1.23"	1.01"
2087-8-8S	-	1/2-14	1/2-14	1.23"	1.23"
2087-12-8S	-	3/4-14	1/2-14	1.36"	1.35"
2087-12-12S	-	3/4-14	3/4-14	1.36"	1.36"
2087-16-12S	-	1-11-1/2	3/4-14	1.62"	1.39"
2087-16-16S	-	1-11-1/2	1-11-1/2	1.62"	1.62"
2087-20-20S	-	1-1/4-11-1/2	1-1/4-11-1/2	1.70"	1.70"
2087-24-24S	-	1-1/2-11-1/2	1-1/2-11-1/2	2.08"	2.08"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
