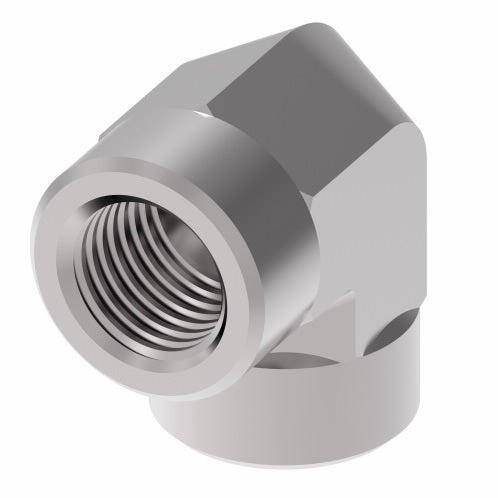

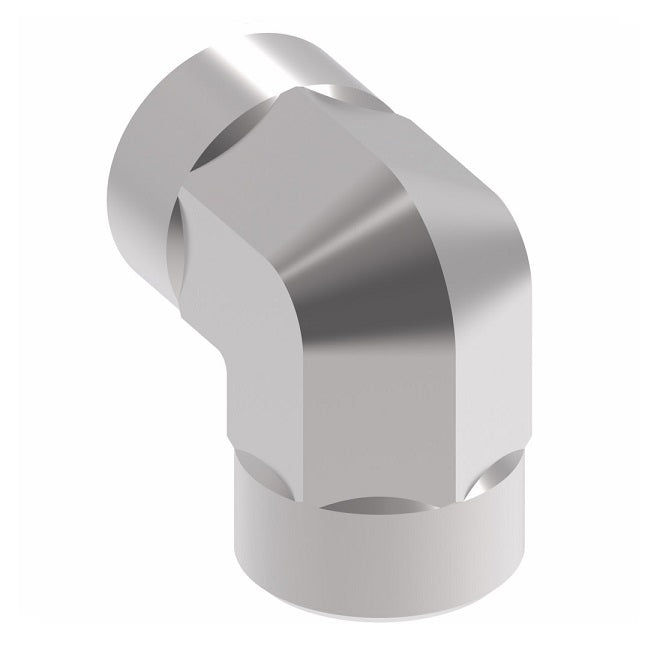

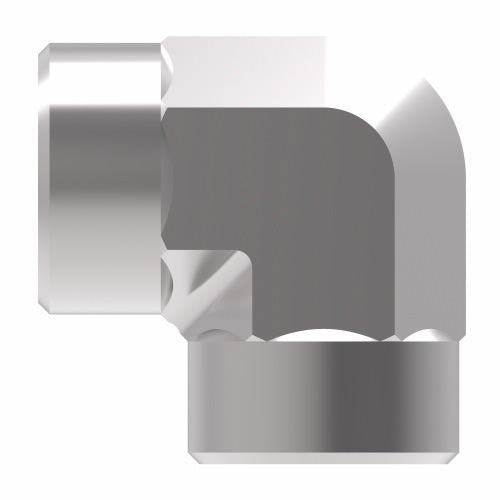

2087-20-20S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -20 Female NPTF x -20 Female NPTF | Steel
2087-20-20S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -20 Female NPTF x -20 Female NPTF | Steel
2087-20-20S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -20 Female NPTF x -20 Female NPTF | Steel
2087-20-20S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -20 Female NPTF x -20 Female NPTF | Steel

2087-20-20S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -20 Female NPTF x -20 Female NPTF | Steel

$65.28 - $65.28
$65.28
$65.28 - $65.28
$65.28

Aeroquip® by Danfoss
Internal Pipe/Internal Pipe Adapter
Female NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2087-20-20S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1-1/4in Female NPTF, 1-1/4in Female NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140238
Steel Part Number Stainless Steel Part Number Thread P1 Thread P2 A B
2087-2-2S - 1/8-27 1/8-27 0.66" 0.66"
2087-4-2S - 1/4-18 1/8-27 0.88" 0.67"
2087-4-4S - 1/4-18 1/4-18 0.88" 0.88"
2087-6-4S - 3/8-18 1/4-18 1.02" 1.01"
2087-6-6S - 3/8-18 3/8-18 1.02" 1.02"
2087-8-6S - 1/2-14 3/8-18 1.23" 1.01"
2087-8-8S - 1/2-14 1/2-14 1.23" 1.23"
2087-12-8S - 3/4-14 1/2-14 1.36" 1.35"
2087-12-12S - 3/4-14 3/4-14 1.36" 1.36"
2087-16-12S - 1-11-1/2 3/4-14 1.62" 1.39"
2087-16-16S - 1-11-1/2 1-11-1/2 1.62" 1.62"
2087-20-20S - 1-1/4-11-1/2 1-1/4-11-1/2 1.70" 1.70"
2087-24-24S - 1-1/2-11-1/2 1-1/2-11-1/2 2.08" 2.08"
