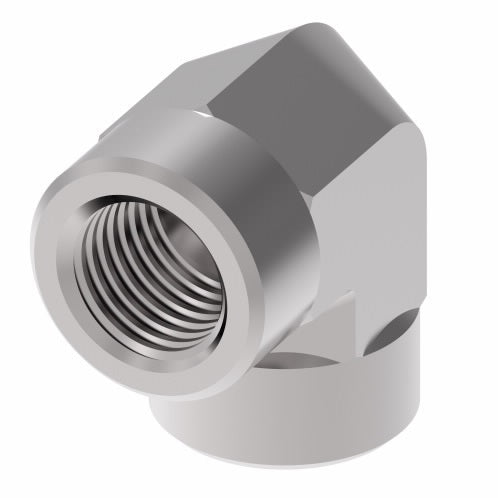

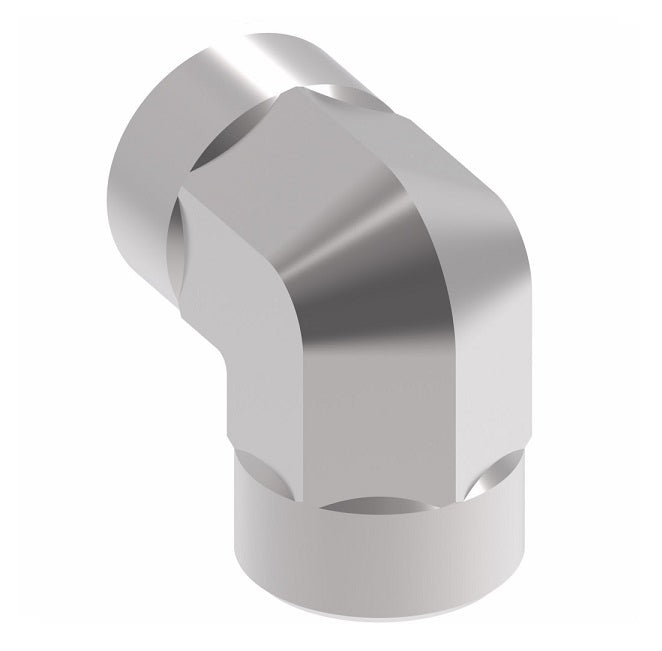

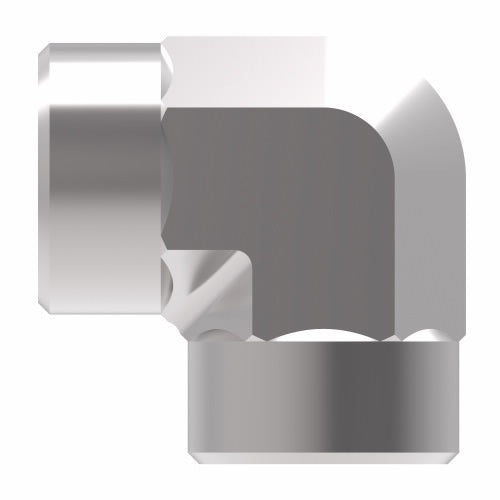

2087-24-24S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -24 Female NPTF x -24 Female NPTF | Steel

2087-24-24S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -24 Female NPTF x -24 Female NPTF | Steel

Name: 2087-24-24S Aeroquip by Danfoss | Internal Pipe/Internal Pipe 90° Elbow Adapter | -24 Female NPTF x -24 Female NPTF | Steel
Brand: Danfoss/Eaton
SKU: 2087-24-24S Danfoss
Price: 100.09 USD
Availability: InStock

$100.09 - $100.09

$100.09

$100.09 - $100.09

$100.09

Aeroquip® by Danfoss
Internal Pipe/Internal Pipe Adapter
Female NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2087-24-24S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1-1/2in Female NPTF, 1-1/2in Female NPTF
Material(s):	Steel

Specifications:
Ref. SAE 140238


Steel Part Number	Stainless Steel Part Number	Thread P1	Thread P2	A	B
2087-2-2S	-	1/8-27	1/8-27	0.66"	0.66"
2087-4-2S	-	1/4-18	1/8-27	0.88"	0.67"
2087-4-4S	-	1/4-18	1/4-18	0.88"	0.88"
2087-6-4S	-	3/8-18	1/4-18	1.02"	1.01"
2087-6-6S	-	3/8-18	3/8-18	1.02"	1.02"
2087-8-6S	-	1/2-14	3/8-18	1.23"	1.01"
2087-8-8S	-	1/2-14	1/2-14	1.23"	1.23"
2087-12-8S	-	3/4-14	1/2-14	1.36"	1.35"
2087-12-12S	-	3/4-14	3/4-14	1.36"	1.36"
2087-16-12S	-	1-11-1/2	3/4-14	1.62"	1.39"
2087-16-16S	-	1-11-1/2	1-11-1/2	1.62"	1.62"
2087-20-20S	-	1-1/4-11-1/2	1-1/4-11-1/2	1.70"	1.70"
2087-24-24S	-	1-1/2-11-1/2	1-1/2-11-1/2	2.08"	2.08"
