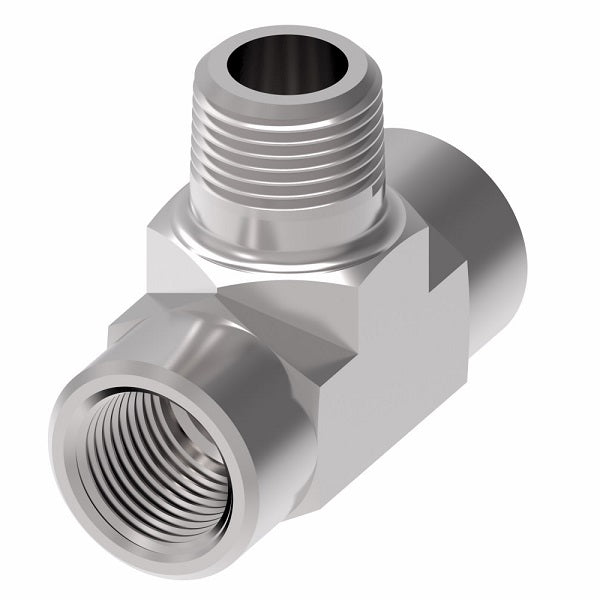

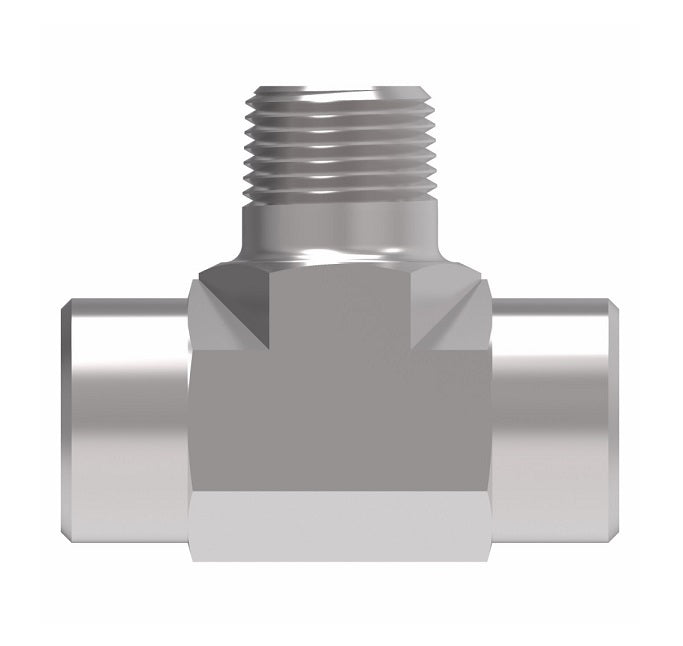

2091-8-8S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe Tee Adapter | -08 Female NPTF x -08 Female NPTF x -08 Male NPTF | Steel
2091-8-8S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe Tee Adapter | -08 Female NPTF x -08 Female NPTF x -08 Male NPTF | Steel
2091-8-8S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe Tee Adapter | -08 Female NPTF x -08 Female NPTF x -08 Male NPTF | Steel

2091-8-8S Aeroquip by Danfoss | External Pipe Branch/Internal Pipe Tee Adapter | -08 Female NPTF x -08 Female NPTF x -08 Male NPTF | Steel

$11.92 - $11.92
$11.92
$11.92 - $11.92
$11.92

Aeroquip® by Danfoss
External Pipe Branch/Internal Pipe Tee Adapter
Female NPTF x Female NPTF x Male NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2091-8-8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Female NPTF, 1/2in Female NPTF, 1/2in Male NPTF
Material(s): Steel
Specifications:
  • Ref. SAE 140425
Steel Part Number Stainless Steel Part Number Threads P1 Threads P2 A B
2091-2-2S - 1/8-27 1/8-27 0.78" 0.66"
2091-4-4S - 1/4-18 1/4-18 1.09" 0.88"
2091-6-6S - 3/8-18 3/8-18 1.22" 1.02"
2091-8-8S - 1/2-14 1/2-14 1.47" 1.23"
2091-12-12S - 3/4-14 3/4-14 1.59" 1.36"
2091-16-16S - 1-11-1/2 1-11-1/2 1.97" 1.62"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
