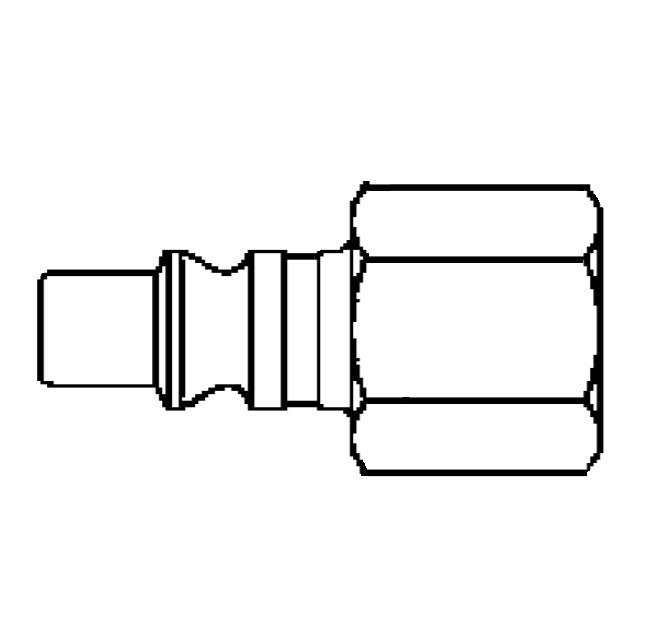

20AP37F Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 3/8" Female NPTF x 1/4" Body Size | Plug | Steel

20AP37F Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 3/8" Female NPTF x 1/4" Body Size | Plug | Steel

$44.68 - $44.68
$44.68
$44.68 - $44.68
$44.68

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind.

The universal design makes the Auto-Flo an extremely flexible coupling series.
Specifications for Variant SKU: 20AP37F Danfoss
Brand: Hansen
Series: Auto-Flo 23 Series / 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
  • Sleeve guard protects against accidental disconnection.
Applications & Markets:
  • General Pneumatics
  • Air Tools
  • Construction
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru-Flate Interchange plugs/males.
Series Max. Operating Pressure Min. Burst Pressure Rated Flow
Auto-Flo 23 10 bar 150 psi 40 bar 600 psi 792 lpm 28 gpm
Auto-Flo 24 10 bar 150 psi 40 bar 600 psi 1,274 lpm 45 gpm
Interchangeability
Auto-Flo 23 Auto-Flo 24
US Industrial Interchange
ISO 6150 Series B		 (Euro Interchange)
A-A-59439
(former MIL-C-4109)		 CEJN 320
Tru-Flate Interchange
ARO 210 Interchange		 RECTUS 25
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Plug/Male (ARO 210)
(Figure 3)
Plug/Male (Tru-Flate)
(Figure 4)
Auto-Flo 23 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
B23AS25F Socket/Female 1/4" 1/4" 1/4-18 Female NPTF Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS25FBS Socket/Female 1/4" 1/4" 1/4-19 Female BSPP Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS37F Socket/Female 1/4" 3/8" 3/8-18 Female NPTF Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS37FBS Socket/Female 1/4" 3/8" 3/8-19 Female BSPP Brass 1 2.02"
(51.31mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
Auto-Flo 23 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
11 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11G** Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 2 2.44"
(61.98mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
13 Plug/Male 1/4" 1/8" 1/8-27 Female NPTF Steel 2 1.47"
(37.34mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
15E Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 2 1.69"
(42.93mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
11B Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Brass 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
LL11 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Stainless Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
2609 Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 3 1.55"
(39.37mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
2609B Plug/Male 1/4" 1/4" 1/4-19 Female BSPP Steel 3 1.52"
(38.61mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
20AP37F Plug/Male 1/4" 3/8" 3/8-18 Female NPTF Steel 3 1.61"
(40.89mm)		 0.94"
(23.88mm)		 0.81"
(20.57mm)
21AP25F Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Steel 4 1.53"
(38.86mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
11NK Plug/Male 1/4" 1/4" 1/4-18 Female NPTF Nickel Plated Steel 2 1.63"
(41.40mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)

** With Bleeder Ball Check - Reduces Hose Whip
