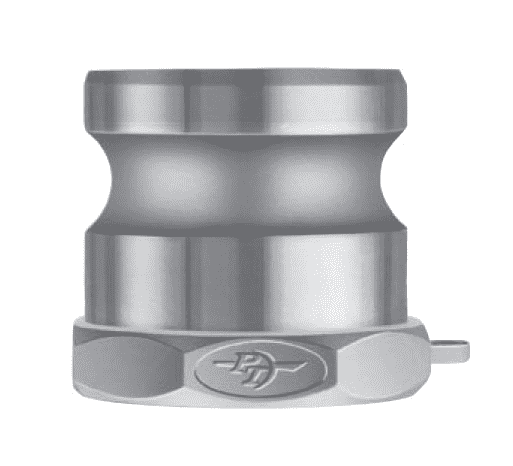

64342000 (20AS) by PT-Coupling | 2" Adapter x 2" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal

64342000 (20AS) by PT-Coupling | 2" Adapter x 2" Female NPSH | 316 Stainless Steel | Buna Fuel Resistant Seal

Save $9.25 Save $9.25
$83.25
$83.25 - $83.25
$83.25
$74.00
$74.00 - $74.00
$74.00
Specifications for Variant SKU: 64342000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 2in Male Cam & Groove, 2in Female NPSH
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Straight Threads - Part AS - Adapter x Female Straight Pipe (NPSH) Thread - 316 Stainless Steel
Features & Applications:
  • Female straight pipe threads are compatible with male NPSH, NPSM and NPT threads.
  • Comes standard with a Buna Fuel Resistant straight thread gasket.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
This Fitting is also Available in the Following Materials:

Part
Name		 Item # Adapter
Size		 Female NPSH
Thread		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
07AS 64341075 3/4" 3/4" - - - - 250 PSI
15AS 64341500 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 250 PSI
20AS 64342000 2" 2" 2.54" 1.72" 2.92" 0.31" 250 PSI
20X30AS 64342030 2" 3" - - - - 200 PSI
25AS 64342500 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 200 PSI
30AS 64343000 3" 3" 2.84" 2.80" 4.22" 0.44" 200 PSI
40AS 64344000 4" 4" 3.16" 3.78" 5.41" 0.39" 150 PSI
50AS 64345000 5" 5" 3.22" 4.79" 6.49" 0.35" 75 PSI
60AS 64346000 6" 6" 3.35" 5.90" 7.70" 0.60" 75 PSI
80AS 64348000 8" 8" 4.50" 7.80" 10.23" 0.60" 50 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
