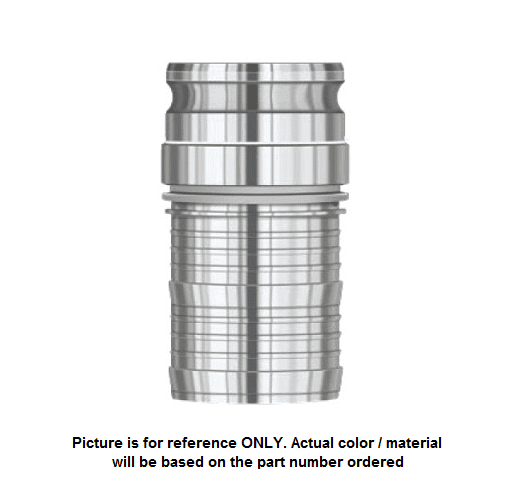

60252000 (20ESV) by PT-Coupling | 2" Swivel Adapter x 2" Hose Shank | Aluminum | Viton Seal

60252000 (20ESV) by PT-Coupling | 2" Swivel Adapter x 2" Hose Shank | Aluminum | Viton Seal

Save $13.51 Save $13.51
$121.62
$121.62 - $121.62
$121.62
$108.11
$108.11 - $108.11
$108.11
Specifications for Variant SKU: 60252000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type E
Ends Configuration: 2in Male Cam & Groove, 2in Hose Barb
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part ESV - 360° Swivel - Adapter x Hose Shank - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Adapter
Size		 Hose Shank
Size		 Outside
Diameter
(B)		 Overall
Length
(C)		 Max. Allowable
Working Press.
(PSI)*
15ESV 60251500 - 1-1/2" 1-1/2" 2.14" 5.10" 250 PSI
20ESV 60252000 - 2" 2" 2.64" 5.75" 250 PSI
25ESV 60252500 - 2-1/2" 2-1/2" 3.07" 6.63" 200 PSI
30ESV 60253000 - 3" 3" 3.70" 6.88" 200 PSI
40ESV 60254000 - 4" 4" 4.71" 7.20" 150 PSI
50ESV 60255000 - 5" 5" 6.56" 7.56" 75 PSI
60ESV 60256000 - 6" 6" 7.10" 10.10" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
