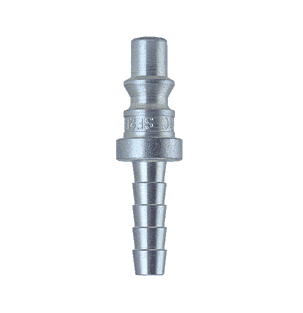

210-17 ZSi-Foster Quick Disconnect 210 Series 1/4" Plug - 3/8" ID - Hose Stem - Steel

210-17 by ZSi-Foster | Quick Disconnect | 210 Series | 1/4" Plug | 3/8" ID | Hose Stem | Steel

Save $0.31

$3.11

$3.11 - $3.11

$3.11

$2.80

$2.80 - $2.80

$2.80

ZSi-Foster Quick Disconnect Couplings - Non-Standard Interchange Design - 210 Series 1/4" Plugs - Hose Stem

Quantity

Specifications for Variant SKU: 210-17 ZSi-Foster
Series:	210 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Male ARO 210 QD Interchange, 3/8in Hose Barb
Material(s):	Steel

Interchange:
Interchange with ARO 210 Series
Features:
Foster 210 Series couplings are manual to connect designs and interchange with 1/4" body size ARO 210 series plugs.
Specifications:
Type: One Way Shut-Off Rated Pressure: 300 PSI Temperature Range (Buna seal): -40 deg. to +250 deg. F Locking Device: Stainless Steel pins Operation: Manual - Socket sleeve must be retracted to connect and disconnect Automatic - Push to Connect

Female CouplerPart Number	Brand	Male PlugPart Number	I.D. Size	Description
210M-3603	Foster	210-16	1/4"	Brass/Steel
210M-3603NP	Foster	-	1/4"	Brass/Steel Nickel Plated sleeve
210M-3603S/S	Foster	-	1/4"	303 Stainless Steel
-	Foster	210-165	5/16"	Brass/Steel
210M-3653S/S	Foster	-	5/16"	303 Stainless Steel
210M-3703	Foster	210-17	3/8"	Brass/Steel
B-2OS3-B	Breco	B-O2S3-S	3/8"	Brass

Requires Hose Clamp

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
