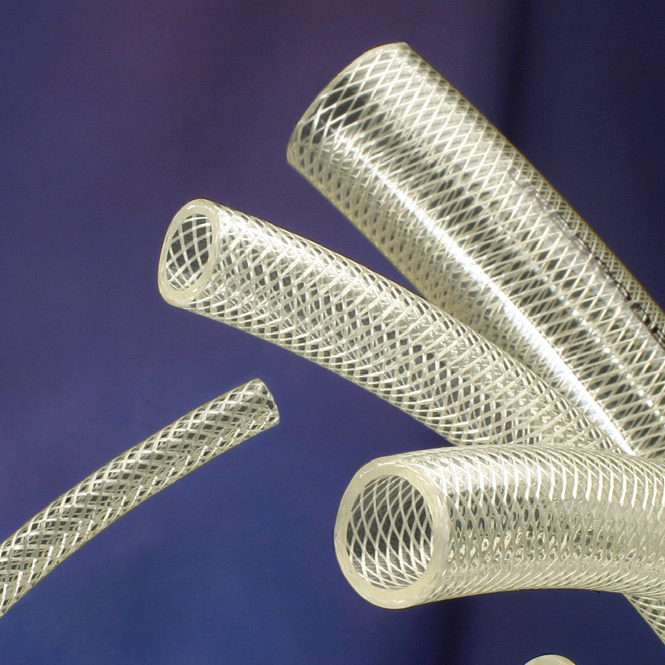

2200303-100 UREBRADE® by NewAge | Braid Reinforced Polyurethane PU Hose | 0.625" ID x 0.905" OD x 0.140" Wall | Clear | 100ft

Save $13.77

$444.44

$444.44 - $444.44

$444.44

$430.67

$430.67 - $430.67

$430.67

NewAge Industries - UREBRADE® - Polyurethane Tubing - Braid Reinforced Polyurethane Hose (PUR - PU Hose)

Package Quantity: 100 FT

Quantity

Specifications for Variant SKU: 2200303-100 NewAge \| 100 \|
Brand:	Urebrade
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.625in
Outer Diameter:	0.905in
Tubing Construction:	Polyurethane
Applicable Specs & Approvals:	BPA Free, Conflict Mineral Free, DEHP Free, Applicable FDA Requirements, NSF 61, Phthalate Free, RoHS

Other Features:
Application:	Abrasive Powder Transfer, Agricultural, Air Lines (Lubricated), Cement Slurries, Clean Liquids, Fuel & Oil, Granular Materials, Grease & Lubrication Lines, Hydraulics, Internal Contamination Fluids, Nuclear Power Facilities, Petroleum Products, Pneumatics, Robotics, Slurry Transfer, Well Pipe & Cable Jacket	Tube:	Polyurethane
Reinforcement:	Braid Reinforced	Cover:	N/A
Temperature Range:	175°F	Color:	Clear
Opacity:	Transparent	Specifications	BPA Free, Conflict Mineral Free, DEHP Free, FDA, NSF-61, Phthalate Free, RoHS
Open mesh polyester braiding incorporated within the wall of flexible, ether-based polyurethane Made from non-toxic raw ingredients conforming to FDA standards Raw materials are listed by the National Sanitation Foundation (NSF 61) for use with potable water Offers much greater pressure capability than unreinforced polyurethane tubing Resistant to weathering†, tearing, impact, abrasion, radiation exposure, oils, greases, and fuels†† Wide range of temperature resistance; -90°F to 175°F Naturally transparent for visual contact with the flow Made in the USA
Notes:
†Hydrolytic Stability - UREBRADE® is supplied in an ether formulation, making it resistant to attack from moisture and fungi. The raw materials used in UREBRADE® are listed by the National Sanitation Foundation (NSF 61). Where applications involve repeated flexing, heavy vibration, or abrasion, UREBRADE® offers superior service life over other materials. Ester-based UREBRADE® is available through minimum order - contact support. ††Due to additives in today's gasoline and petroleum products, field testing should be performed. For easy identification, transparent UREBRADE® is imprinted with the trademarked name.

Physical Properties**
Hardness, Shore A ±5	85
Tensile Strength, psi	5500
Elongation at Break, %	580
Brittle Temperature	-90°F
Max. Operating Temperature	175°F

**Values listed are typical and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for the application.

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Length	Working PSI (at 70°F)	Bend Radius(in.)	Weight (lbs/100ft)
2200072-100	0.250"	0.470"	0.110"	100 ft	250 PSI	0.750"	6.04 Lbs
2200149-100	0.375"	0.630"	0.127"	100 ft	190 PSI	0.750"	9.78 Lbs
2200226-100	0.500"	0.750"	0.125"	100 ft	150 PSI	1.500"	11.92 Lbs
2200303-100	0.625"	0.905"	0.140"	100 ft	130 PSI	2.000"	16.34 Lbs
2200380-50	0.750"	1.025"	0.137"	50 ft	100 PSI	3.000"	18.62 Lbs
2200380-100	0.750"	1.025"	0.137"	100 ft	100 PSI	3.000"	18.62 Lbs
2200457-50	1.000"	1.300"	0.150"	50 ft	80 PSI	3.500"	26.32 Lbs
2200457-100	1.000"	1.300"	0.150"	100 ft	80 PSI	3.500"	26.32 Lbs
2200534-100	1.250"	1.710"	0.230"	100 ft	75 PSI	4.000"	51.94 Lbs
2200611-100	1.500"	1.930"	0.215"	100 ft	130 PSI	5.500"	56.26 Lbs
2200688-100	2.000"	2.500"	0.250"	100 ft	40 PSI	7.500"	85.82 Lbs
