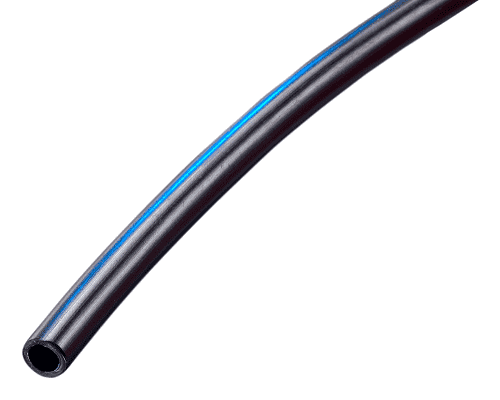

221-0440X2K Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Tubing | 1/4" OD | Black | .170" ID | Polyethylene | 2000ft Length

221-0440X2K Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Tubing | 1/4" OD | Black | .170" ID | Polyethylene | 2000ft Length

Save $91.20 Save $91.20
$319.20
$319.20 - $319.20
$319.20
$228.00
$228.00 - $228.00
$228.00

Kuriyama Kuri Tec® Series 221 Linear Low Density Industrial Grade Polyethylene Tubing LLDPE Industrial Grade Black colored tubing for general industrial applications.

Package Quantity: 2000 FT

Specifications for Variant SKU: 221-0440X2K Kuriyama | 2000 |
Brand: Kuri Tec
Series: 221 Series
Hose Color(s): Black
Internal Diameter: 0.17in
Outer Diameter: 0.25in
Tubing Construction: Polyethylene
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Transfer of air and liquids in industrial applications. Humidifier fill lines, Instrument air lines, For outdoor uses where exposure to sunlight occurs, Air conditioning drain lines SAE Rating: N/A
Other Ratings: N/A Tube: Linear low density polyethylene tubing - black color in compliance with RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 50 deg. F (-45 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Resistant to sunlight and other forms of ultra-violet radiation.
  • Excellent resistance to solvents.
  • Chemically inert.

Part Number Color Nominal OD Nominal ID Nominal Wall Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Coil Pkg.
221-0440X2K Black 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 2000Ft Spool 22 lbs.
2231-0440X1K Yellow 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2232-0440X1K Orange 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2234-0440X1K Red 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2236-0440X1K Blue 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2237-0440X1K Green 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
221-0462X2K Black 1/4" 6.4mm .125" 3.1mm .062" 1.6mm 150 PSI 75 PSI 2000Ft Spool 30 lbs.
221-0562X15C Black 5/16" 7.9mm .188" 4.8mm .062" 1.6mm 150 PSI 75 PSI 1500Ft Spool 30 lbs.
221-0662X500 Black 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 500Ft Spool 13 lbs.
221-0662X1K Black 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 1000Ft Spool 25 lbs.
221-0862X500 Black 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 500ft Spool 18 lbs
221-1062X500 Black 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 500ft Coil 23 lbs

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
