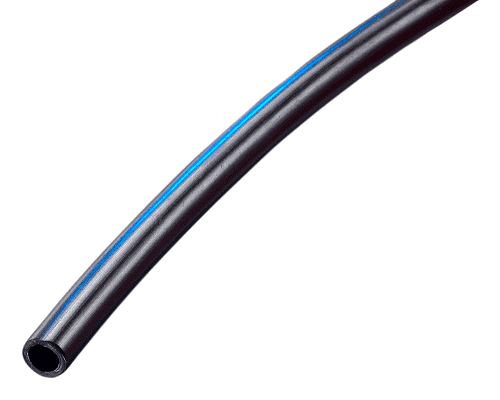

221-0562X15C Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Tubing | 5/16" OD | Black | .188" ID | Polyethylene | 1500ft Length

221-0562X15C Kuri-Tec by Kuriyama | 221 Series | Linear Low Density Industrial Grade Tubing | 5/16" OD | Black | .188" ID | Polyethylene | 1500ft Length

Save $111.60 Save $111.60
$390.60
$390.60 - $390.60
$390.60
$279.00
$279.00 - $279.00
$279.00

Kuriyama Kuri Tec® Series 221 Linear Low Density Industrial Grade Polyethylene Tubing LLDPE Industrial Grade Black colored tubing for general industrial applications.

Package Quantity: 1500 FT

Specifications for Variant SKU: 221-0562X15C Kuriyama | 1500 |
Brand: Kuri Tec
Series: 221 Series
Hose Color(s): Black
Internal Diameter: 0.1875in
Outer Diameter: 0.3125in
Tubing Construction: Polyethylene
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Transfer of air and liquids in industrial applications. Humidifier fill lines, Instrument air lines, For outdoor uses where exposure to sunlight occurs, Air conditioning drain lines SAE Rating: N/A
Other Ratings: N/A Tube: Linear low density polyethylene tubing - black color in compliance with RoHS(15) requirements.
Reinforcement: N/A Cover: N/A
Temperature Range: 50 deg. F (-45 deg. C) to +140 deg. F (+60 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • Economical and lightweight.
  • LLDPE resin provides excellent environmental stress crack resistance.
  • Resistant to sunlight and other forms of ultra-violet radiation.
  • Excellent resistance to solvents.
  • Chemically inert.

Part Number Color Nominal OD Nominal ID Nominal Wall Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Spool/Coil Pkg.
221-0440X2K Black 1/4" 6.4mm .170" 4.3mm .040" 1.0mm 140 PSI 60 PSI 2000Ft Spool 22 lbs.
2231-0440X1K Yellow 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2232-0440X1K Orange 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2234-0440X1K Red 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2236-0440X1K Blue 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
2237-0440X1K Green 1/4" 6.4mm .170" 3.1mm .040" 1.0mm 140 PSI 60 PSI 1000Ft Spool 11 lbs.
221-0462X2K Black 1/4" 6.4mm .125" 3.1mm .062" 1.6mm 150 PSI 75 PSI 2000Ft Spool 30 lbs.
221-0562X15C Black 5/16" 7.9mm .188" 4.8mm .062" 1.6mm 150 PSI 75 PSI 1500Ft Spool 30 lbs.
221-0662X500 Black 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 500Ft Spool 13 lbs.
221-0662X1K Black 3/8" 9.5mm .250" 6.4mm .062" 1.6mm 125 PSI 50 PSI 1000Ft Spool 25 lbs.
221-0862X500 Black 1/2" 12.7mm .375" 9.5mm .062" 1.6mm 100 PSI 35 PSI 500ft Spool 18 lbs
221-1062X500 Black 5/8" 15.9mm .500" 12.7mm .062" 1.6mm 75 PSI 25 PSI 500ft Coil 23 lbs

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
