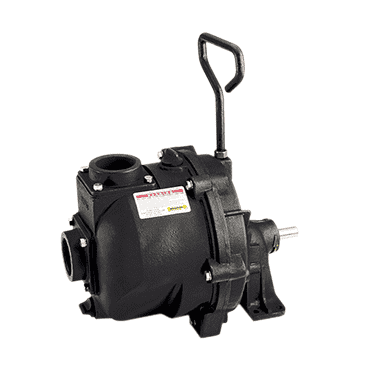

222PBI Banjo 2" 222 Series Cast Iron Bearing Pedestal with 3/4" Shaft Straight Keyed

222PBI by Banjo | Centrifugal Pumps | 2" 222 Series Cast Iron Bearing Pedestal with 3/4" Shaft Straight Keyed

Save $84.21 Save $84.21
$757.88
$757.88 - $757.88
$757.88
$673.67
$673.67 - $673.67
$673.67

Banjo Self-Priming Centrifugal Pumps - 2" 222 Series Cast Iron Pumps with Electric Motors & Replacement Parts
Specifications for Variant SKU: 222PBI Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 2" Cast Iron Centrifugal Pump Instruction Manual PDF Video: N/A
Replacement Parts: Replacement Parts for 2" 222 Series Cast Iron Pumps with Electric Motors
Features:
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
  • Pump end separated from engine
  • Heavy duty slinger seal on motor shaft
  • Large weep holes between pump end and engine
  • "V" shaped for quicker priming
Motor Features:
  • Efficient Industrial Electric Motors
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings, locked drive end bearing
  • Heavy gauge steel frame
  • Motors wound with inverter spike resistance magnet wire
  • Mounted complete on heavy duty cast iron base plate
  • 230 V Motors
Notes:
  • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS.
Part Number Description Horsepower Repair Kit Number FKM(viton type) Repair Kit Number Seal Kit Number FKM(viton type) Seal Kit Number Adapter Kit
222 Series 2" Cast Iron Pumps with Electric Motors
222PIE5 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor 5.0 HP 15000 15000V 15999 15999V 12756 (Made to Order)
222PIE51 2" Cast Iron Pump with 5.0 HP Single Phase Electric Motor 5.0 HP 15000 15000V 15999 15999V 12756 (Made to Order)
222 Series 2" Cast Iron Bearing Pedestal with Electric Motors
222PBI Cast Iron Bearing Pedestal with 3/4" Shaft Straight Keyed N/A 15000 15000V 15999 15999V N/A (Made to Order)
Polyethylene Suction Basket Strainers
300SBS 3" Female Thread Poly Basket N/A --- --- --- --- --- ---
Replacement Parts for 222 Series Cast Iron Pumps with Gas Engines
Item Part Number Description Quantity Required
14 15702 Volute 1
15 15703 Rear Bracket 1
21 15712 Body 1
Not Shown 12099 7/16"-14 x 1.25" HHCS 1
Not Shown 15751 Bracket Shim 1
Not Shown 15752 Impeller Shim 1
Not Shown 15000 Repair Kit (Items 5, 8,11-12, 18-20, 12099, 15751 & 15752) 1
Not Shown 15000V FKM (viton type) Repair Kit 1
Not Shown 15999 Seal Kit (Items 5, 11-12, 18-20, 12099, 15751 & 15752) 1
Not Shown 15999V FKM (viton type) Seal Kit 1
