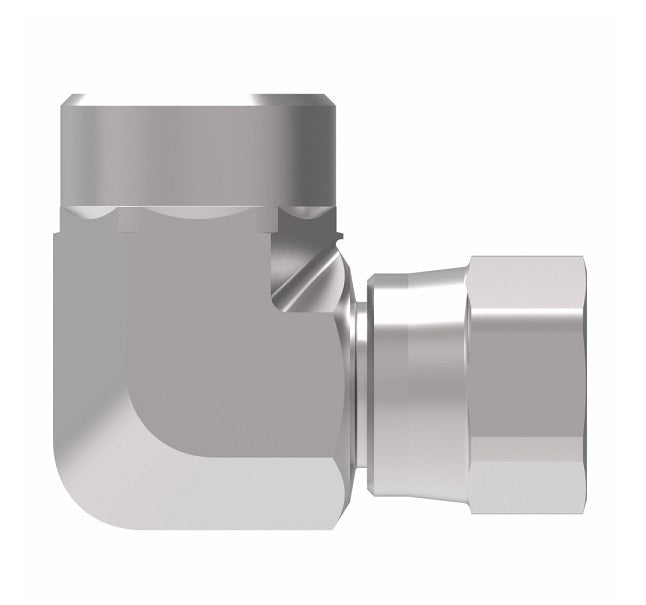

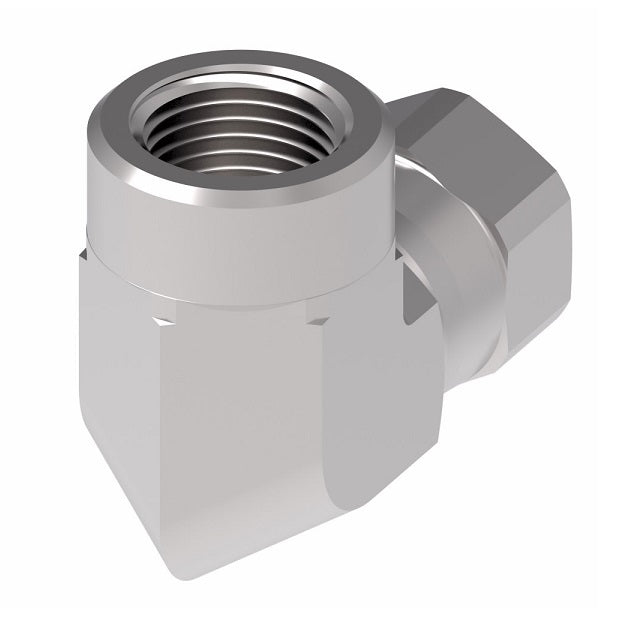

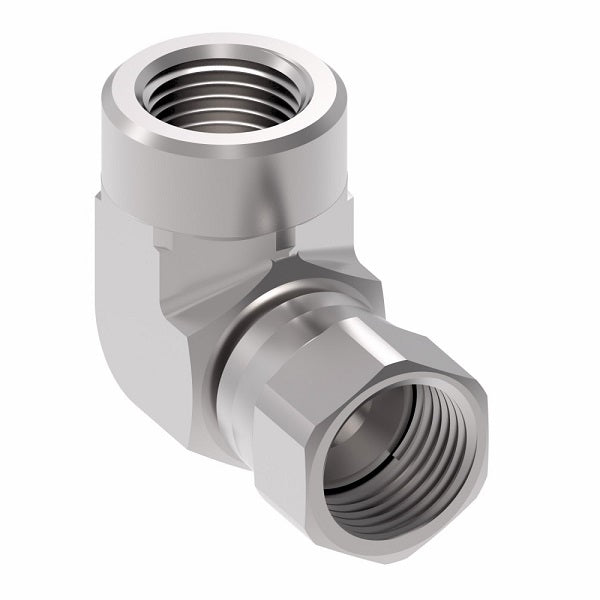

2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel

2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel

Name: 2244-8-8S Aeroquip by Danfoss | Internal Pipe/37° JIC Flare Swivel 90° Elbow Adapter | -08 Female NPTF x -08 Female 37° JIC Flare Swivel | Steel
Brand: Danfoss/Eaton
SKU: 2244-8-8S Danfoss
Price: 22.16 USD
Availability: InStock

$22.16 - $22.16

$22.16

$22.16 - $22.16

$22.16

Aeroquip® by Danfoss
External Pipe Swivel/37° JIC Flare Adapter
Male NPTF Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 2244-8-8S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	1/2in Female NPTF, 1/2in Female JIC
Material(s):	Steel
Special Properties:	Swivel

Applications:
To be used with petroleum or water glycol fluids.
Note:
This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.


Part Number Steel	Tube O.D.	Thread P	Thread T	A	B
2244-6-6S	0.38"	3/8-18	9/16-18	1.02"	0.92"
2244-8-8S	0.50"	1/2-14	3/4-16	1.23"	1.08"
2244-8-10S	0.63"	1/2-14	7/8-14	1.23"	1.12"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
