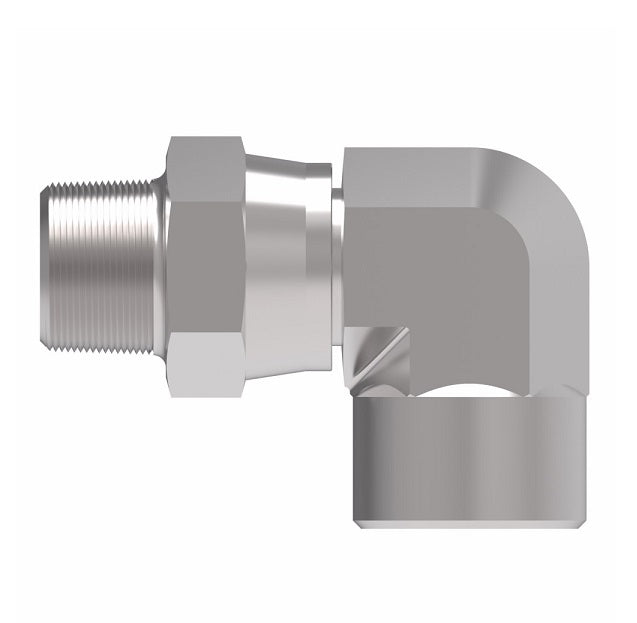

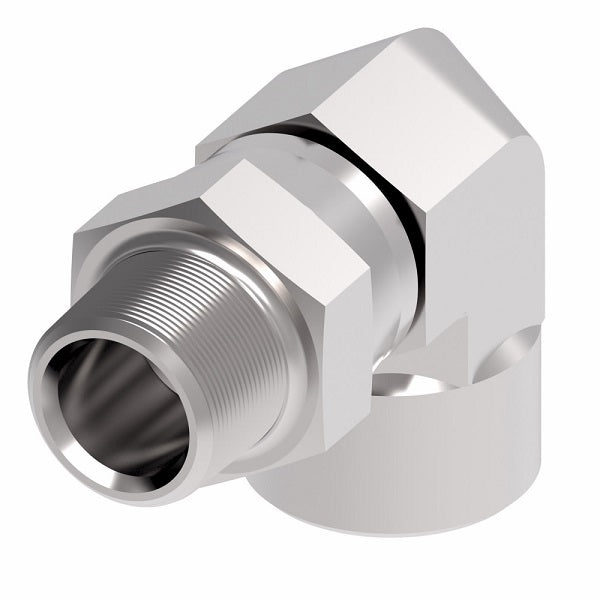

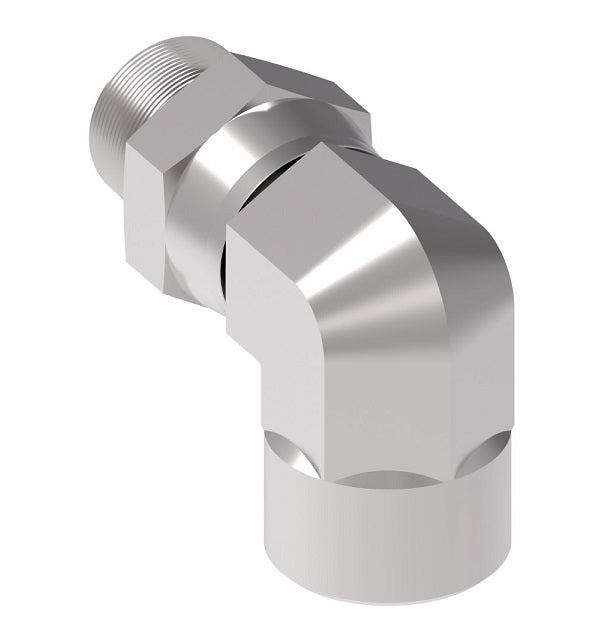

2252-2-2S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2252-2-2S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2252-2-2S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel
2252-2-2S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel

2252-2-2S Aeroquip by Danfoss | External Pipe Swivel/Internal Pipe 90° Elbow Adapter | -02 Male NPTF x -02 Female NPTF | Steel

$49.49 - $49.49
$49.49
$49.49 - $49.49
$49.49

Aeroquip® by Danfoss
External Pipe Swivel/Internal Pipe
Male NPTF x Female NPTF
90° Elbow

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2252-2-2S Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPTF, 1/8in Female NPTF
Material(s): Steel
Special Properties: Swivel
Applications:
  • To be used with petroleum or water glycol fluids.
Notes:
  • This adapter is not a rotating union or swivel joint. Care must be exercised to avoid misuse.
Steel Part Number Thread P1 Thread P2 A B
2252-2-2S 1/8-27 1/8-27 1.38" 0.68"
2252-4-4S 1/4-18 1/4-18 1.72" 0.88"
2252-6-6S 3/8-18 3/8-18 1.78" 1.02"
2252-8-8S 1/2-14 1/2-14 2.14" 1.23"
2252-12-12S 3/4-14 3/4-14 2.61" 1.59"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
