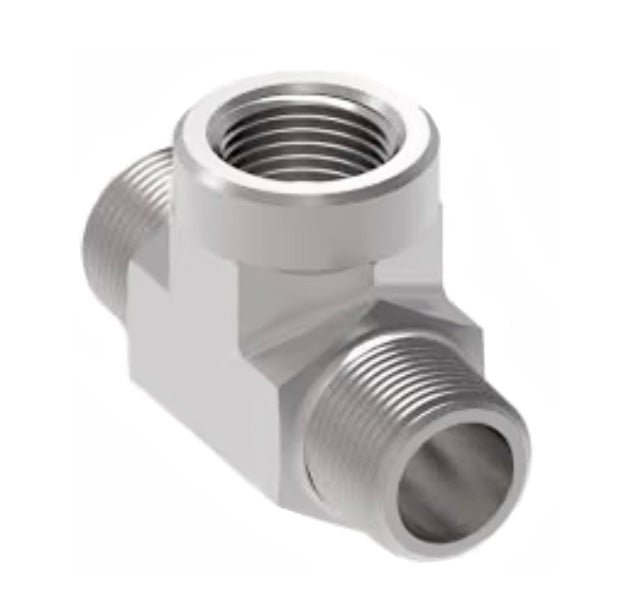

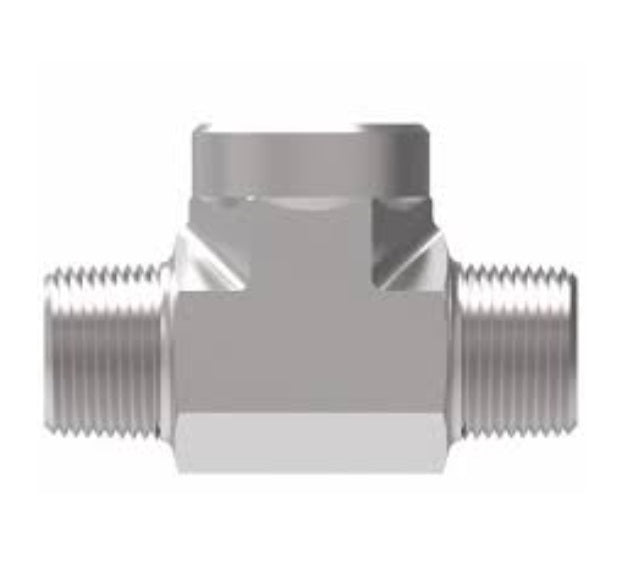

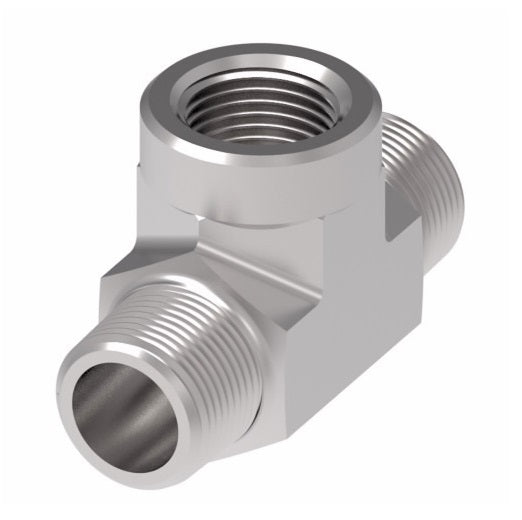

2256-8-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -08 Male NPTF x -08 Female NPTF | Steel
2256-8-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -08 Male NPTF x -08 Female NPTF | Steel
2256-8-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -08 Male NPTF x -08 Female NPTF | Steel
2256-8-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -08 Male NPTF x -08 Female NPTF | Steel

2256-8-8S Aeroquip by Danfoss | External Pipe/Internal Pipe Branch Tee Adapter | -08 Male NPTF x -08 Male NPTF x -08 Female NPTF | Steel

$25.18 - $25.18
$25.18
$25.18 - $25.18
$25.18

Aeroquip® by Danfoss
External Pipe/Internal Pipe Branch Tee Adapter
Male NPTF x Male NPTF x Female NPTF

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 2256-8-8S Danfoss
Shape (Orientation): Tee
Ends Configuration: 1/2in Male NPTF, 1/2in Male NPTF, 1/2in Female NPTF
Material(s): Steel
Steel Part Number Threads P1 Threads P2 A B
2256-2-2S 1/8-27 1/8-27 0.78" 0.66"
2256-4-4S 1/4-18 1/4-18 1.09" 0.88"
2256-6-6S 3/8-18 3/8-18 1.22" 1.02"
2256-8-8S 1/2-14 1/2-14 1.47" 1.23"
2256-12-12S 3/4-14 3/4-14 1.59" 1.36"
2256-16-16S 1-11-1/2 1-11-1/2 - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
