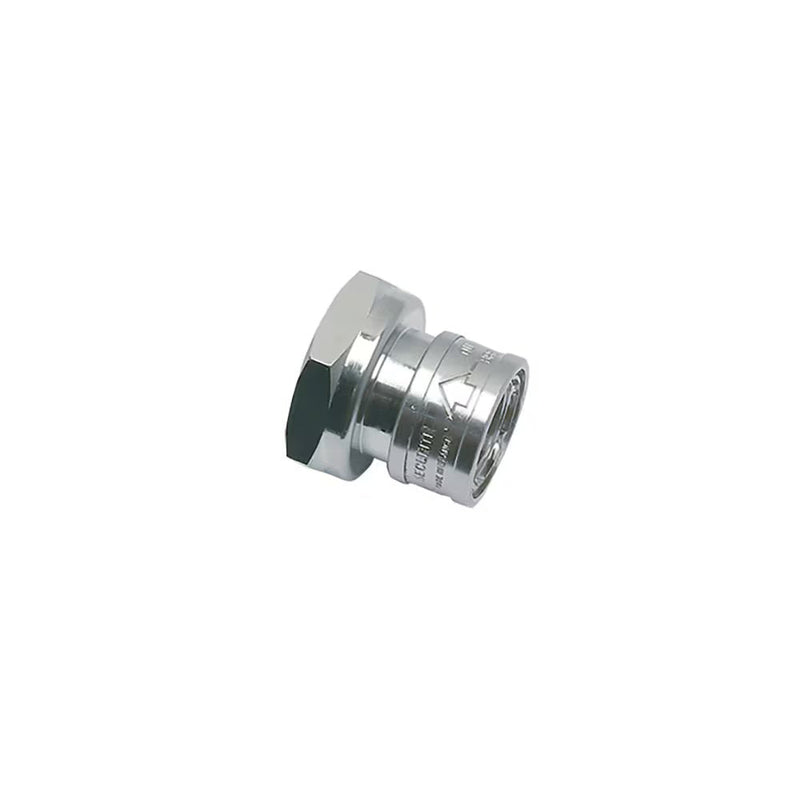

2272 12 21 by Parker | Legris Coupler Quick Disconnect | 1/2" Female BSPP Thread | 24 mm Hex | 33 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $8.56

$313.63

$313.63 - $313.63

$313.63

$305.07

$305.07 - $305.07

$305.07

by Parker Hannifin
Midi Series:2272 Coupler without valve, Female BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 2272 12 21 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	G	L
2272 12 21	12 mm	1/2"	10 mm	24 mm	29 mm	33 mm
2272 12 27	12 mm	3/4"	10 mm	30 mm	29 mm	34.5 mm
2272 12 34	12 mm	1"	10 mm	36 mm	29 mm	34.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
