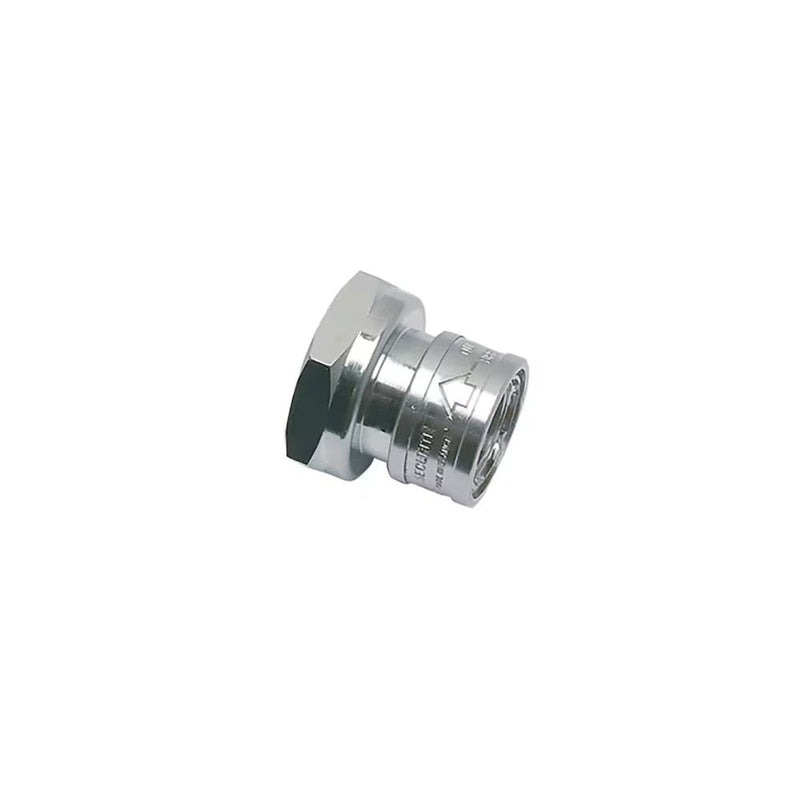

2272 12 34 by Parker | Legris Coupler Quick Disconnect | 1" Female BSPP Thread | 36 mm Hex | 34.5 mm Length | Straight | Nickel-Plated Brass

Save $1.36

$50.08

$50.08 - $50.08

$50.08

$48.72

$48.72 - $48.72

$48.72

by Parker Hannifin
Midi Series:2272 Coupler without valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: 2272 12 34 Parker
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	G	L
2272 12 21	12 mm	1/2"	10 mm	24 mm	29 mm	33 mm
2272 12 27	12 mm	3/4"	10 mm	30 mm	29 mm	34.5 mm
2272 12 34	12 mm	1"	10 mm	36 mm	29 mm	34.5 mm
