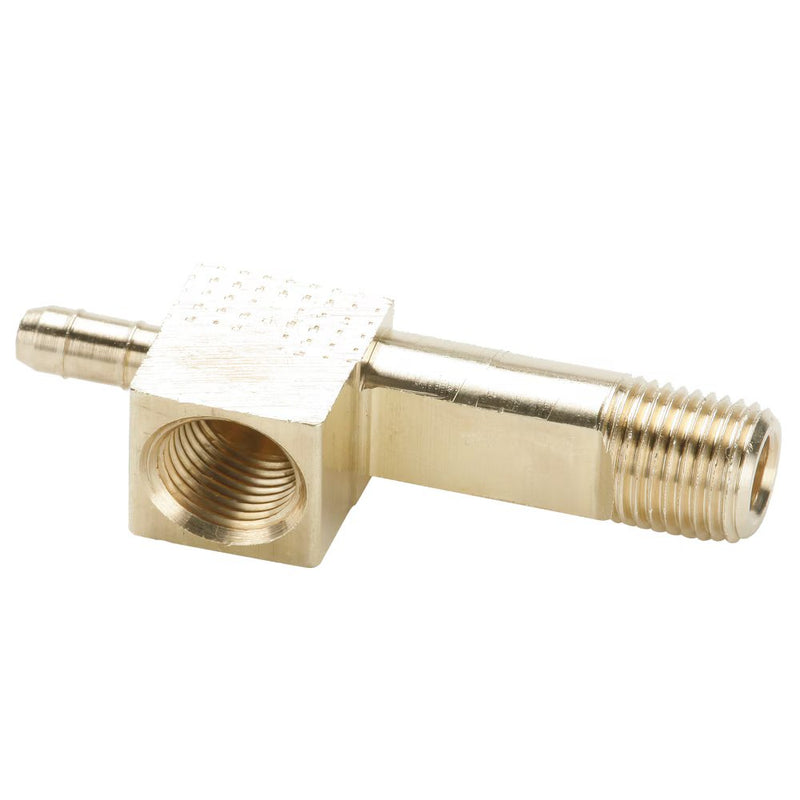

228-4-2 by Parker | Dubl-Barb® Fittings | 1/4" Tube OD x 1/8" Female Pipe Thread x 1/8" Male Pipe Thread | 1.91" Length | Tee | Brass | Pack of 50

228-4-2 by Parker | Dubl-Barb® Fittings | 1/4" Tube OD x 1/8" Female Pipe Thread x 1/8" Male Pipe Thread | 1.91" Length | Tee | Brass | Pack of 50

Save $69.20 Save $69.20
$761.17
$761.17 - $761.17
$761.17
$691.97
$691.97 - $691.97
$691.97

by Parker Hannifin
Dubl-Barb® Fittings:Gauge Tee 228

Package Quantity: 50 Units

Specifications for Variant SKU: 228-4-2 Parker | 50 |
Brand: Dubl-Barb®
Shape (Orientation): Tee
Material(s): Brass
Special Properties: Vibration Resistance
Product Features:
  • Compact
  • One piece
  • No clamp required
  • Good vibration resistance
Markets:
  • Pneumatic
  • Environmental control
Applications:
  • Pneumatic Systems
  • Climate Control
  • Humidifiers
  • Filters
Specification:
Temperature Range: See Chart Below
Pressure Range: See Chart Below
Compatible Tubing:
  • Polyethylene
Part Number Tube OD Tube ID Pipe Thread L M N Flow Diameter (D)
228-4-2 1/4" .170" 1/8" 1.91" .66" .44" .120"
