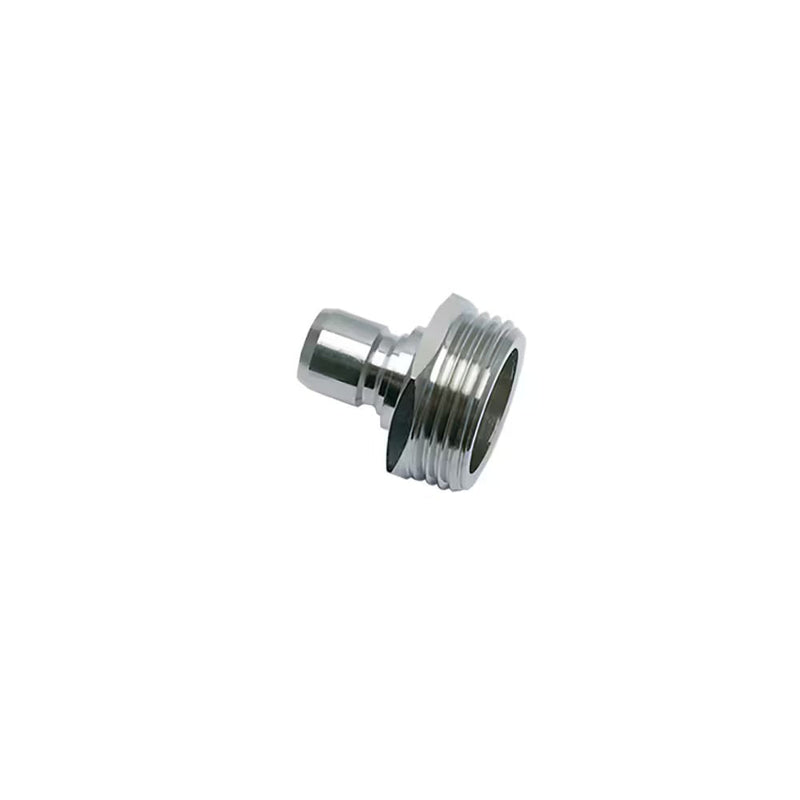

2294 12 21 by Parker | Legris Plug Quick Disconnect | 1/2" Male BSPP Thread | 22 mm Hex | 37 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $3.27

$117.54

$117.54 - $117.54

$117.54

$114.27

$114.27 - $114.27

$114.27

by Parker Hannifin
Midi Series:2294 Plug without valve, Male BSPP Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 2294 12 21 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	C	E	F	L
2294 12 17	12 mm	3/8"	6 mm	22 mm	31.5 mm
2294 12 21	12 mm	1/2"	9.5 mm	22 mm	37 mm
2294 12 27	12 mm	3/4"	13.5 mm	27 mm	41 mm
2294 12 34	12 mm	1"	10.5 mm	34 mm	36 mm

Probe without Shut-off
