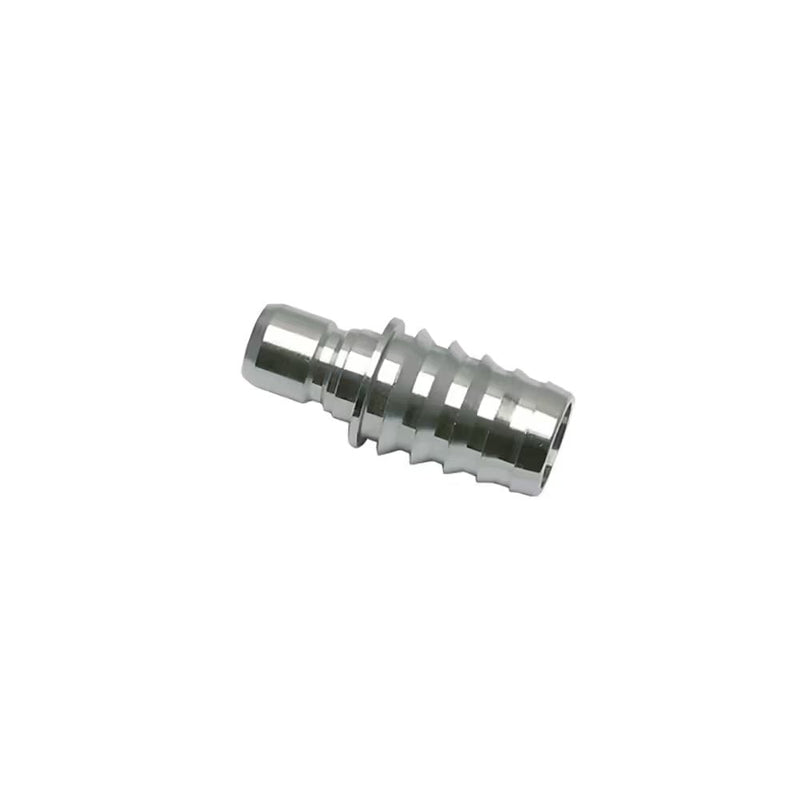

2295 12 12 by Parker | Legris Plug Quick Disconnect | 12 mm Tube Size x 13.5 mm Hose Barb | 48 mm Length | Straight | Nickel-Plated Brass | Pack of 10

Save $66.31

$165.78

$165.78 - $165.78

$165.78

$99.47

$99.47 - $99.47

$99.47

by Parker Hannifin
Midi Series:2295 Plug without valve, with Barb Connection for Flexible Hose

Package Quantity: 10 Units

Specifications for Variant SKU: 2295 12 12 Parker \| 10 \|
Series:	Midi Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass

Midi Series	Midi Series are adapted for water and compressed air applications. The wide range of plugs many combinations for the end-users. Designed for transmission of water and fluids High flow capabilities Maximum energy efficiency
Working Pressure:	up to 20 bar
Material:	Coupling: Nickel Plated Brass Plug: Nickel Plated Brass Seals: NBR
Working Temperature:	-20°C up to +100°C (NBR)
Flow Rate Air:	2.200 NI/min. (inlet pressure 6 bar, pressure drop 0.6 bar)


Part Number	Diameter Nominal (DN)	ØD	ØD1	G	L	L1
2295 12 12	12 mm	12 mm	13.5 mm	17 mm	48 mm	27 mm
2295 12 15	12 mm	15 mm	16.5 mm	18 mm	48 mm	27 mm
2295 12 19	12 mm	19 mm	20.5 mm	24 mm	57 mm	33 mm

Probe without Shut-off
