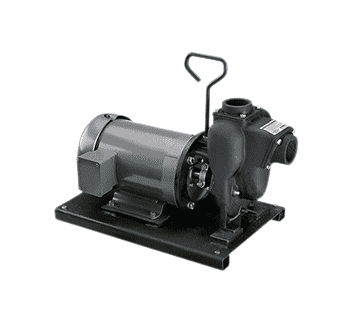

234PIE5 Banjo 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor
234PIE5 Banjo 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor
234PIE5 Banjo 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor
234PIE5 Banjo 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor

234PIE5 by Banjo | Centrifugal Pumps | 2" Cast Iron Pump with 5.0 HP Three Phase Electric Motor

Save $1,130.32 Save $1,130.32
$2,825.80
$2,825.80 - $2,825.80
$2,825.80
$1,695.48
$1,695.48 - $1,695.48
$1,695.48



Banjo Self-Priming Centrifugal Pumps - 2" Cast Iron Pumps with Electric Motors & Replacement Parts


Specifications for Variant SKU: 234PIE5 Banjo

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Product Manual: 1-1/2 & 2" Cast Iron & Stainless Steel Pump Instruction Manual Video: N/A
Replacement Parts: Replacement Parts for 2" Cast Iron Pumps with Electric Motors
Features:
  • Cast iron construction for rugged dependable service
  • Stainless steel shaft sleeve to protect engine shaft
  • Carbon ceramic seal with stainless steel cup and spring with FKM (viton type) rubber
  • Replaceable inlet and outlet flanges
  • Dynamically balanced impeller
Motor Features:
  • Pressure cast aluminum end plates with ribbed design for rigidity
  • Ball bearings, locked drive end bearing
  • Heavy gauge steel frame
  • Motors wound with inverter spike resistance magnet wire
  • Mounted complete on heavy duty cast iron base plate
  • 230 V Motors
Notes:
  • CAUTION-WARNING: Please do not run pumps dry, restrict or reduce port sizes or dead head pumps. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • Motor warranty service available at authorized dealers.

Part Number Description Horsepower
2" Cast Iron Pumps with Electric Motors
234PIE5 2" Cast Iron Pump w/5.0 HP Three Phase Electric Motor 5.0 HP (Made to Order)
234PIE51 2" Cast Iron Pump w/5.0 HP Single Phase Electric Motor 5.0 HP (Made to Order)
2" Cast Iron Pump Only
234POI 2" Cast Iron Pump Only w/ 184TC Frame Adapter N/A (Made to Order)
Polyethylene Suction Basket Strainers
300SBS 3" Female Thread Poly Basket N/A ---

Replacement Parts for 234PIE5 & 234PIE51
Item Part Number Description Quantity Required
1 17000 Outlet Flange 1
2 17002 Inlet Flange 1
3 17446 C-Flange Adapter 1
4 17406 Impeller Shaft 1
5 17408 Impeller 1
6 17009B 5/8" Impeller Nut 1
7 17010 1/2" Hex Nut 1
8 17011 Wear Plate 1
9 17013 Outlet Gasket 1
10 17016 Gasket & Check Valve 1
11 17018 Gasket Adapter 1
12 17019 Bolt 8
13 15022 Handle 1
14 18129 Clamp Assembly with Key 1
15 17026 Pump Housing 1
16 V10118 5/16" Lock Washer 20
17 17042 Housing Stud 6
18 V10119 Hex Nut 8
19 17449 Bolt 4
20 18058 Washer 4
21 18025 Seal Assembly 1
22 17701 Base Plate Assembly 1
23 17704 Bolt 4
24 V20018 3/8" Lock Washer 4
25 17130 5/16-18 x 1.00" FHSCS, 18-8 SS 2
26 BEM51 Electric Motor 1
27 12777 1/2" Plug 1
28 UV15163 O-Ring for Drain Plug 1

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
