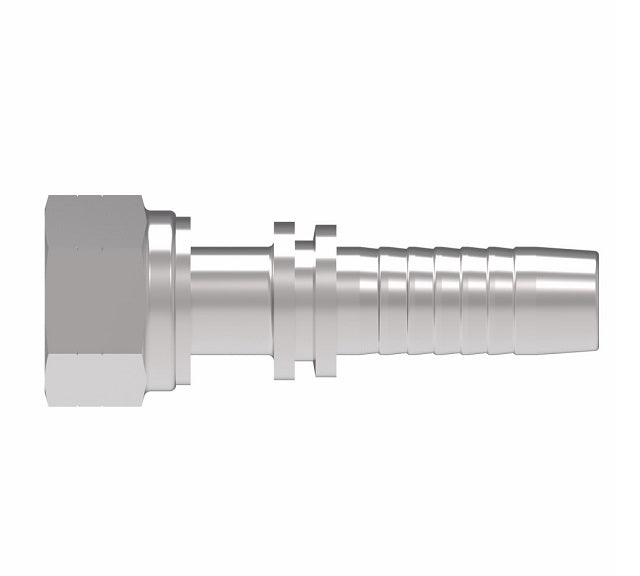

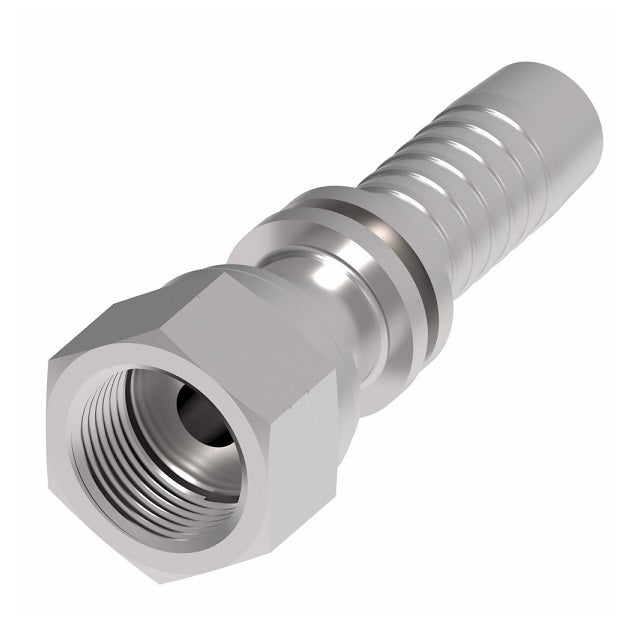

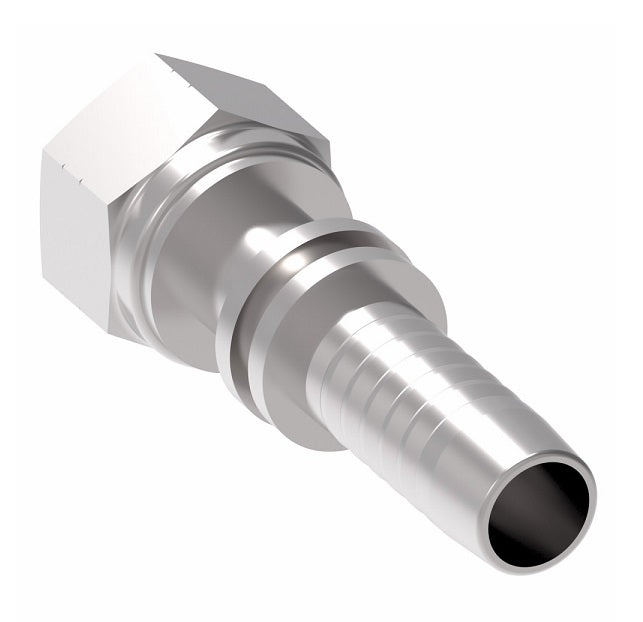

24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel
24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

24211-08-08ZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -08 Hose Barb | Steel

$16.52 - $16.52
$16.52
$16.52 - $16.52
$16.52

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - Straight
Specifications for Variant SKU: 24211-08-08ZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1
24211-04-04ZF -04 9/16"x18 6 -04 1.99" 0.89" 0.16" 17mm
24211-06-06ZF -06 11/16"x16 10 -06 2.19" 1.00" 0.28" 22mm
24211-08-08ZF -08 13/16"x16 12 -08 2.34" 1.10" 0.39" 27mm
26791-10-10ZF -10 1"x14 16 -10 2.64" 1.30" 0.47" 30mm
24211-12-12ZF -12 1-3/16"x12 20 -12 2.89" 1.38" 0.59" 36mm
24211-16-16TZF
(with Captive Nut)		 -16 1.7/16"x12 25 -16 3.23" 1.38" 0.83" 41mm
