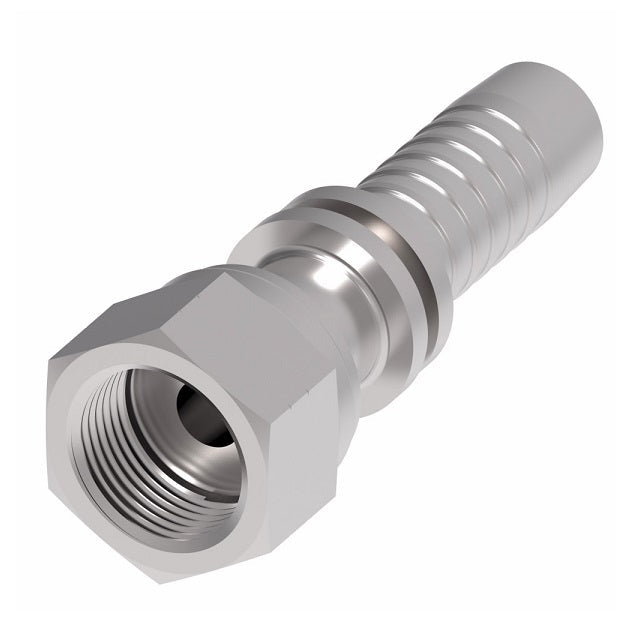

24211-16-16TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

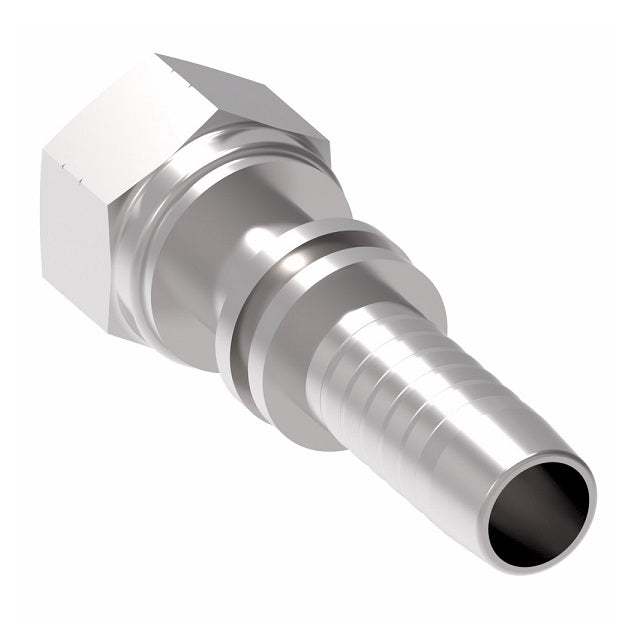

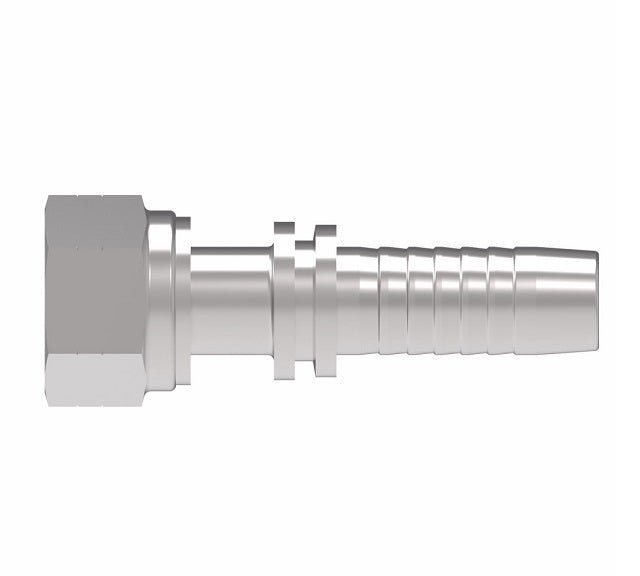

24211-16-16TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
24211-16-16TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
24211-16-16TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

24211-16-16TZF Winner by Danfoss | Female ORS Swivel 2-Piece Hose Crimp Fitting (with Captive Nut) | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel

$32.51 - $32.51
$32.51
$32.51 - $32.51
$32.51

Winner by Danfoss
Female O-Ring Face Seal (ORS) Swivel 2-Piece Hose Crimp Fitting - Female O-Ring Face Seal Swivel x Hose Barb - Straight
Specifications for Variant SKU: 24211-16-16TZF Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Female O-Ring Face Seal, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: EC115 Series  |   EC215 Series  |   EC110 Series  |   EC210 Series  |   EC118 Series
Features:
  • Non-skive, two-piece crimp Fitting.
  • Zinc Trivalent Chromate (Cr3) (Clear silver hexavalent chromium-free) plating.
  • Carbon steel material.
Part Number Terminal End
Dash Size		 Thread DN Hose
Size		 A D
Cut Off Factor		 E&Oslash Hex 1
24211-04-04ZF -04 9/16"x18 6 -04 1.99" 0.89" 0.16" 17mm
24211-06-06ZF -06 11/16"x16 10 -06 2.19" 1.00" 0.28" 22mm
24211-08-08ZF -08 13/16"x16 12 -08 2.34" 1.10" 0.39" 27mm
26791-10-10ZF -10 1"x14 16 -10 2.64" 1.30" 0.47" 30mm
24211-12-12ZF -12 1-3/16"x12 20 -12 2.89" 1.38" 0.59" 36mm
24211-16-16TZF
(with Captive Nut)		 -16 1.7/16"x12 25 -16 3.23" 1.38" 0.83" 41mm
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
