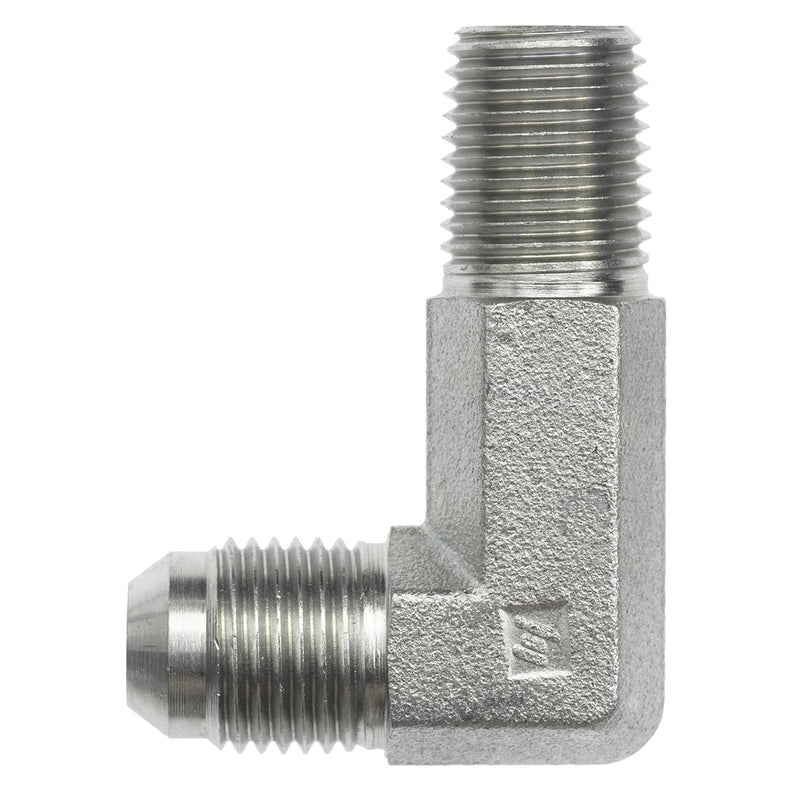

2501-L-04-04-FG by Brennan Inc. | -04 Male JIC x -04 Male Pipe | 90° Elbow (Long) | Forged Steel

2501-L-04-04-FG by Brennan Inc. | -04 Male JIC x -04 Male Pipe | 90° Elbow (Long) | Forged Steel

Save $2.83 Save $2.83
$7.08
$7.08 - $7.08
$7.08
$4.25
$4.25 - $4.25
$4.25

Brennan Inc.
Tube Fittings & Adapters: 1501-L Male JIC x Male Pipe 90° Elbow (Long)
Specifications for Variant SKU: 2501-L-04-04-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Male JIC, 1/4in Male NPTF
Material(s): Steel
Special Properties: Long Drop
Part Number Material Tube O.D. B1 SAE37° A2 NPTF B1 Drill A2 Drill M Length L Length Y Flats
2501-L-08-06-B Brass 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 1.25" 1.82" 0.750"

2501-L-04-02-FG Forged Steel 1/4" 7/16-20" 1/8-27" 0.172" 0.188" 0.890" 1.170" 0.438"
2501-L-04-04-FG Forged Steel 1/4 7/16-20" 1/4-18" 0.172" 0.281" 1.05" 1.58" 0.562"
2501-L-05-02-FG Forged Steel 5/16" 1/2-20" 1/8-27" 0.234 0.188" 0.950" 1.170" 0.562"
2501-L-05-04-FG Forged Steel 5/16" 1/2-20" 1/4-18" 0.234 0.281" 1.05" 1.58" 0.562"
2501-L-06-02-FG Forged Steel 3/8" 9/16-18" 1/8-27" 0.297" 0.188" 1.06" 1.39" 0.562"
2501-L-06-04-FG Forged Steel 3/8" 9/16-18" 1/4-18" 0.297" 0.281" 1.06" 1.580" 0.562"
2501-L-06-06-FG Forged Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.406" 1.140" 1.820" 0.750"
2501-L-06-08-FG Forged Steel 3/8" 9/16-18" 1/2-14" 0.297" 0.531" 1.22" 2.17" 0.875"
2501-L-08-04-FG Forged Steel 1/2" 3/4-16" 1/4-18" 0.391" 0.281" 1.25" 1.82" 0.750"
2501-L-08-06-FG Forged Steel 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 1.25" 1.82" 0.750"
2501-L-08-08-FG Forged Steel 1/2" 3/4-16" 1/2-14" 0.391" 0.531" 1.33" 2.17" 0.875"
2501-L-08-12-FG Forged Steel 1/2" 3/4-16" 3/4-14" 0.391" 0.719" 1.42" 2.44" 1.062"
2501-L-10-08-FG Forged Steel 5/8" 7/8-14" 1/2-14" 0.484" 0.531" 1.450" 2.170" 0.875"
2501-L-10-12-FG Forged Steel 5/8" 7/8-14" 3/4-14" 0.484" 0.719" 1.54" 2.44" 1.062"
2501-L-12-08-FG Forged Steel 3/4" 1-1/16-12" 1/2-14" 0.609" 0.531" 1.66" 2.44" 1.062"
2501-L-12-12-FG Forged Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 0.719" 1.66" 2.44" 1.062"
2501-L-12-16-FG Forged Steel 3/4" 1-1/16-12" 1-11-1/2" 0.609" 0.938" 1.76" 3.01" 1.312"
2501-L-14-12-FG Forged Steel 7/8" 1-3/16-12" 3/4-14" 0.719" 0.719" 1.80" 2.59" 1.312"
2501-L-16-12-FG Forged Steel 1" 1-5/16-12" 3/4-14" 0.844" 0.719" 1.810" 2.820" 1.312"
2501-L-16-16-FG Forged Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 0.938" 1.810" 3.01" 1.312"
2501-L-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.078" 1.250" 2.060" 3.690" 1.625"
2501-L-24-24-FG Forged Steel 1-1/2" 1-7/8-12" 1-1/2-11-1/2" 1.312" 1.500" 2.33" 4.10" 1.875"

2501-L-04-02-SS Stainless Steel 1/4" 7/16-20" 1/8-27" 0.172" 0.188" 0.890" 1.170" 0.438"
2501-L-04-04-SS Stainless Steel 1/4 7/16-20" 1/4-18" 0.172" 0.281" 1.05" 1.58" 0.562"
2501-L-06-04-SS Stainless Steel 3/8" 9/16-18" 1/4-18" 0.297" 0.281" 1.06" 1.580" 0.562"
2501-L-06-06-SS Stainless Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.406" 1.140" 1.820" 0.750"
2501-L-08-06-SS Stainless Steel 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 1.25" 1.82" 0.750"
2501-L-08-08-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 0.391" 0.531" 1.33" 2.17" 0.875"
2501-L-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 0.719" 1.66" 2.44" 1.062"
2501-L-16-16-SS Stainless Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 0.938" 1.810" 3.01" 1.312"
