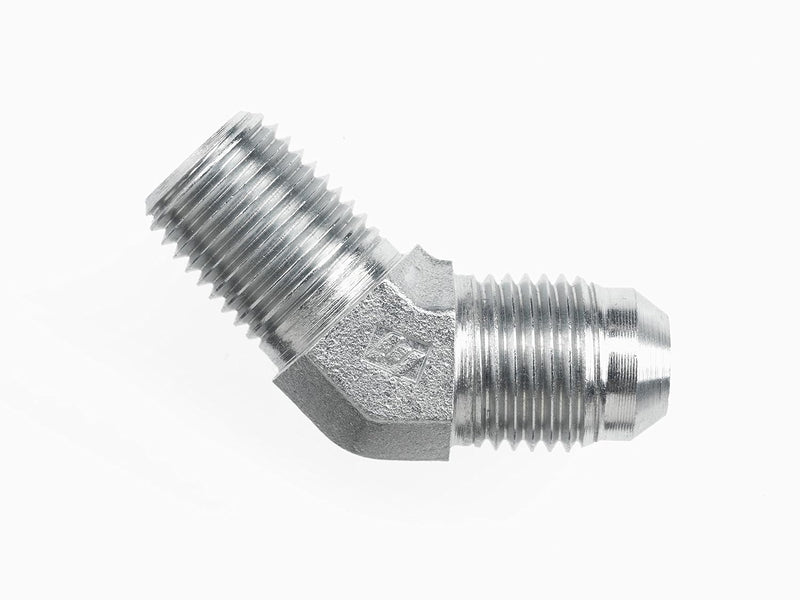

2503-24-24-FG by Brennan Inc. | -24 Male JIC x -24 Male Pipe | 45° Elbow | Forged Steel

2503-24-24-FG by Brennan Inc. | -24 Male JIC x -24 Male Pipe | 45° Elbow | Forged Steel

$29.79 - $29.79
$29.79
$37.80
$37.80 - $37.80
$37.80

Brennan Inc.
Tube Fittings & Adapters: 2503 - Male JIC x Male Pipe 45° Elbow

Specifications for Variant SKU: 2503-24-24-FG Brennan
Shape (Orientation): 45 Degree
Ends Configuration: 1-1/2in Male JIC, 1-1/2in Male NPTF
Material(s): Steel
Part Number Material Tube O.D. B1 SAE37° A2 NPTF B1 Drill A2 Drill M Length L Length Y Flats
2503-02-02-FG Forged Steel 1/8" 5/16-24" 1/8-27" 0.062" 0.188" 0.690" 0.520" 0.438"
2503-03-02-FG Forged Steel 3/16" 3/8-24" 1/8-27" 0.125" 0.188" 0.690" 0.520" 0.438"
2503-04-02-FG Forged Steel 1/4" 7/16-20" 1/8-27" 0.172" 0.188" 0.720" 0.640" 0.438"
2503-04-04-FG Forged Steel 1/4" 7/16-20" 1/4-18" 0.172" 0.281" 0.82" 0.86" 0.562"
2503-04-06-FG Forged Steel 1/4" 7/16-20" 3/8-18" 0.172" 0.406" 0.850" 0.950" 0.750"
2503-04-08-FG Forged Steel 1/4" 7/16-20" 1/2-14" 0.172" 0.531" 0.870" 1.170" 0.875"
2503-05-02-FG Forged Steel 5/16" 1/2-20" 1/8-27" 0.234" 0.188" 0.77" 0.64" 0.562"
2503-05-04-FG Forged Steel 5/16" 1/2-20" 1/4-18" 0.234" 0.281" 0.820" 0.860" 0.562"
2503-05-06-FG Forged Steel 5/16" 1/2-20" 3/8-18" 0.234" 0.406" 0.85" 0.95" 0.750"
2503-06-02-FG Forged Steel 3/8" 9/16-18" 1/8-27" 0.297" 0.188" 0.830" 0.670" 0.562"
2503-06-04-FG Forged Steel 3/8" 9/16-18" 1/4-18" 0.297" 0.281" 0.830" 0.860" 0.562"
2503-06-06-FG Forged Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.406" 0.870" 0.950" 0.750"
2503-06-08-FG Forged Steel 3/8" 9/16-18" 1/2-14" 0.297" 0.531" 0.880" 1.17" 0.875"
2503-06-12-FG Forged Steel 3/8" 9/16-18" 3/4-14" 0.297" 0.719" 0.930" 1.200" 1.062"
2503-08-04-FG Forged Steel 1/2" 3/4-16" 1/4-18" 0.391" 0.281" 0.98" 0.95" 0.750"
2503-08-06-FG Forged Steel 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 0.98" 0.95" 0.750"
2503-08-08-FG Forged Steel 1/2" 3/4-16" 1/2-14" 0.391" 0.531" 0.99" 1.17" 0.875"
2503-08-12-FG Forged Steel 1/2" 3/4-16" 3/4-14" 0.391" 0.719" 1.04" 1.20" 1.062"
2503-10-06-FG Forged Steel 5/8" 7/8-14" 3/8-18" 0.484" 0.406" 1.11" 0.98" 0.875"
2503-10-08-FG Forged Steel 5/8" 7/8-14" 1/2-14" 0.484" 0.531" 1.11" 1.17" 0.875"
2503-10-12-FG Forged Steel 5/8" 7/8-14" 3/4-14" 0.484" 0.719" 1.16" 1.20" 1.062"
2503-12-08-FG Forged Steel 3/4" 1-1/16-12" 1/2-14" 0.609" 0.531" 1.28" 1.2" 1.062"
2503-12-12-FG Forged Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 0.719" 1.28" 1.2" 1.062"
2503-12-16-FG Forged Steel 3/4" 1-1/16-12" 1-11-1/2" 0.609" 0.938" 1.42" 1.48" 1.312"
2503-14-12-FG Forged Steel 7/8" 1-3/16-12" 3/4-14" 0.719" 0.719" 1.45" 1.30" 1.312"
2503-16-08-FG Forged Steel 1" 1-5/16-12" 1/2-14" 0.844" 0.531" 1.470" 1.290" 1.312"
2503-16-12-FG Forged Steel 1" 1-5/16-12" 3/4-14" 0.844" 0.719" 1.470" 1.290" 1.312"
2503-16-16-FG Forged Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 0.938" 1.470" 1.480" 1.312"
2503-16-20-FG Forged Steel 1" 1-5/16-12" 1-1/4-11-1/2" 0.844" 1.250" 1.540" 1.670" 1.625"
2503-20-16-FG Forged Steel 1-1/4" 1-5/8-12" 1-11-1/2" 1.078" 0.938" 1.59" 1.64" 1.625"
2503-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.078" 1.250" 1.59" 1.67" 1.625"
2503-20-24-FG Forged Steel 1-1/4" 1-5/8-12" 1-1/2-11-1/2" 1.078" 1.500" 1.65" 1.77" 1.875"
2503-24-20-FG Forged Steel 1-1/2" 1-7/8-12" 1-1/4-11-1/2" 1.312" 1.250" 1.78" 1.74" 1.875"
2503-24-24-FG Forged Steel 1-1/2" 1-7/8-12" 1-1/2-11-1/2" 1.312" 1.500" 1.78" 1.77" 1.875"
2503-32-32-FG Forged Steel 2" 2-1/2-12" 2-11-1/2" 1.781" 1.938" 2.22" 2.11" 2.500"

2503-04-02-B Brass 1/4" 7/16-20" 1/8-27" 0.172" 0.188" 0.720" 0.640" 0.438"
2503-04-04-B Brass 1/4" 7/16-20" 1/4-18" 0.172" 0.281" 0.82" 0.86" 0.562"
2503-06-04-B Brass 3/8" 9/16-18" 1/4-18" 0.297" 0.281" 0.830" 0.860" 0.562"
2503-06-06-B Brass 3/8" 9/16-18" 3/8-18" 0.297" 0.406" 0.870" 0.950" 0.750"
2503-06-08-B Brass 3/8" 9/16-18" 1/2-14" 0.297" 0.531" 0.880" 1.17" 0.875"
2503-08-06-B Brass 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 0.98" 0.95" 0.750"
2503-08-08-B Brass 1/2" 3/4-16" 1/2-14" 0.391" 0.531" 0.99" 1.17" 0.875"
2503-10-08-B Brass 5/8" 7/8-14" 1/2-14" 0.484" 0.531" 1.11" 1.17" 0.875"
2503-12-12-B Brass 3/4" 1-1/16-12" 3/4-14" 0.609" 0.719" 1.28" 1.2" 1.062"
2503-16-16-B Brass 1" 1-5/16-12" 1-11-1/2" 0.844" 0.938" 1.470" 1.480" 1.312"

2503-02-02-SS Stainless Steel 1/8" 5/16-24" 1/8-27" 0.062" 0.188" 0.690" 0.520" 0.438"
2503-03-02-SS Stainless Steel 3/16" 3/8-24" 1/8-27" 0.125" 0.188" 0.690" 0.520" 0.438"
2503-04-02-SS Stainless Steel 1/4" 7/16-20" 1/8-27" 0.172" 0.188" 0.720" 0.640" 0.438"
2503-04-04-SS Stainless Steel 1/4" 7/16-20" 1/4-18" 0.172" 0.281" 0.82" 0.86" 0.562"
2503-04-06-SS Stainless Steel 1/4" 7/16-20" 3/8-18" 0.172" 0.406" 0.850" 0.950" 0.750"
2503-04-08-SS Stainless Steel 1/4" 7/16-20" 1/2-14" 0.172" 0.531" 0.870" 1.170" 0.875"
2503-05-02-SS Stainless Steel 5/16" 1/2-20" 1/8-27" 0.234" 0.188" 0.77" 0.64" 0.562"
2503-05-04-SS Stainless Steel 5/16" 1/2-20" 1/4-18" 0.234" 0.281" 0.820" 0.860" 0.562"
2503-06-02-SS Stainless Steel 3/8" 9/16-18" 1/8-27" 0.297" 0.188" 0.830" 0.670" 0.562"
2503-06-04-SS Stainless Steel 3/8" 9/16-18" 1/4-18" 0.297" 0.281" 0.830" 0.860" 0.562"
2503-06-06-SS Stainless Steel 3/8" 9/16-18" 3/8-18" 0.297" 0.406" 0.870" 0.950" 0.750"
2503-06-08-SS Stainless Steel 3/8" 9/16-18" 1/2-14" 0.297" 0.531" 0.880" 1.17" 0.875"
2503-08-04-SS Stainless Steel 1/2" 3/4-16" 1/4-18" 0.391" 0.281" 0.98" 0.95" 0.750"
2503-08-06-SS Stainless Steel 1/2" 3/4-16" 3/8-18" 0.391" 0.406" 0.98" 0.95" 0.750"
2503-08-08-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 0.391" 0.531" 0.99" 1.17" 0.875"
2503-08-12-SS Stainless Steel 1/2" 3/4-16" 3/4-14" 0.391" 0.719" 1.04" 1.20" 1.062"
2503-10-06-SS Stainless Steel 5/8" 7/8-14" 3/8-18" 0.484" 0.406" 1.11" 0.98" 0.875"
2503-10-08-SS Stainless Steel 5/8" 7/8-14" 1/2-14" 0.484" 0.531" 1.11" 1.17" 0.875"
2503-10-12-SS Stainless Steel 5/8" 7/8-14" 3/4-14" 0.484" 0.719" 1.16" 1.20" 1.062"
2503-12-08-SS Stainless Steel 3/4" 1-1/16-12" 1/2-14" 0.609" 0.531" 1.28" 1.2" 1.062"
2503-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 0.609" 0.719" 1.28" 1.2" 1.062"
2503-12-16-SS Stainless Steel 3/4" 1-1/16-12" 1-11-1/2" 0.609" 0.938" 1.42" 1.48" 1.312"
2503-16-12-SS Stainless Steel 1" 1-5/16-12" 3/4-14" 0.844" 0.719" 1.470" 1.290" 1.312"
2503-16-16-SS Stainless Steel 1" 1-5/16-12" 1-11-1/2" 0.844" 0.938" 1.470" 1.480" 1.312"
2503-16-20-SS Stainless Steel 1" 1-5/16-12" 1-1/4-11-1/2" 0.844" 1.250" 1.540" 1.670" 1.625"
2503-20-16-SS Stainless Steel 1-1/4" 1-5/8-12" 1-11-1/2" 1.078" 0.938" 1.59" 1.64" 1.625"
2503-20-20-SS Stainless Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.078" 1.250" 1.59" 1.67" 1.625"
2503-24-24-SS Stainless Steel 1-1/2" 1-7/8-12" 1-1/2-11-1/2" 1.312" 1.500" 1.78" 1.77" 1.875"
2503-32-32-SS Stainless Steel 2" 2-1/2-12" 2-11-1/2" 1.781" 1.938" 2.22" 2.11" 2.500"
