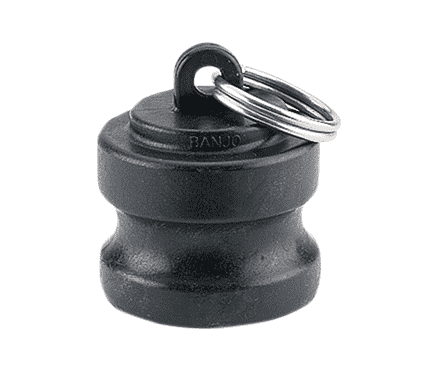

250PL Banjo Polypropylene Cam Lever Coupling - 2-1/2" Plug - Female Coupler - 75 PSI - Gasket: N/A

250PL by Banjo | Cam Lever Coupling | 2-1/2" Plug | Female Coupler | 225 PSI | No Gasket | Polypropylene

Save $1.93 Save $1.93
$17.37
$17.37 - $17.37
$17.37
$15.44
$15.44 - $15.44
$15.44

Banjo Cam Lever Couplings - Polypropylene Cam Lever Couplings - 2-1/2" Series

Specifications for Variant SKU: 250PL Banjo
Applications:
  • Agriculture
  • Industrial
  • Fluids
Features:
  • Stainless steel rings, arms & pins
  • Most complete line of polypropylene couplings available
  • Versatile - interchangeable with all types of cam lever couplers
  • Precision molded - insures a uniform and accurate fit
  • Durable - Polypropylene is glass reinforced for rugged strength and durability
  • Smooth operating - finger rings are designed for easy opening of cam levers
  • Complete series of 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 3" and 4" NPT thread
  • BSP threads available 1" - 3" sizes (excluding 1-1/4")
  • Economical and superior in performance
  • Standard with EPDM gaskets. Buna "N", and FKM (viton type) also available
  • Note: 303B & 303C & All 4" Couplings have 3 Arms for POSITIVE SEAL!
  • WARNING: Couplings should not be disconnected under pressure or with liquid in the line.
Part Number Type End Type Max PSI Gasket
250CAP Part Cap 2-1/2" Cap 300 PSI EPDM
250PL Part PL 2-1/2" Plug 225 PSI None

Note: 1/4", 3/8" and 1/2" series couplings interchange with 3/4" size couplings. Coupling ends are 3/4" size 1-1/4" series couplings interchange with 1" size couplings. Coupling ends are 1" size. 1-1/2" x 1-1/4" couplings interchange with 1-1/2" size couplings. Coupling ends are 1-1/2" size

¡
Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
