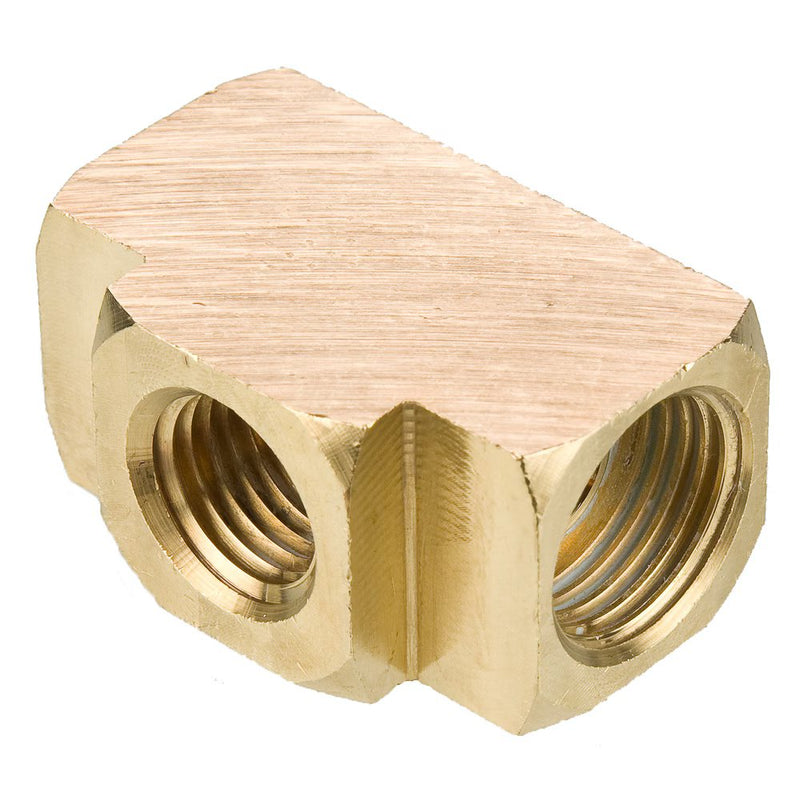

252IFHD-6-4 by Parker | Inverted Flare Fittings | 3/8" Inverted Flare x 1/4" Female Pipe Thread | 1.48" Length | Tee | Brass | Pack of 10

Save $122.22

$305.55

$305.55 - $305.55

$305.55

$183.33

$183.33 - $183.33

$183.33

by Parker Hannifin
Inverted Flared Fittings:Female Branch Tee 252IFHD

Package Quantity: 10 Units

Specifications for Variant SKU: 252IFHD-6-4 Parker \| 10 \|
Series:	252IFHD Series
Shape (Orientation):	Tee
Material(s):	Brass
Special Properties:	Fuel Grade, UL Listed

Specification:
Product Features:	All brass construction UL listed for flammable liquid and gas Meets functional requirements of SAE J512 Steel nut for economy
Markets:	Air Conditioning Marine Mobile Engines
Applications:	Refrigerant Lines Brake Lines Fuel Lines
Pressure Range:	Up to 150 PSI (10.3 bar)
Temperature Range:	-65° to +250° F (-53.8° to +121.1° C)
Pressure Range:	See Chart Below

Compatible Tubing:	Copper Brass Aluminum Welded Steel Hydraulic Tubing


Part Number	Tube Size	Pipe Thread	Straight Thread	L	M	N	Flow Diameter (D)
252IFHD-5-2	5/16"	1/8"	1/2"-20	1.26"	.63"	.45"	.220"
252IFHD-6-4	3/8"	1/4"	5/8"-18	1.48"	.74"	.56"	.282"
