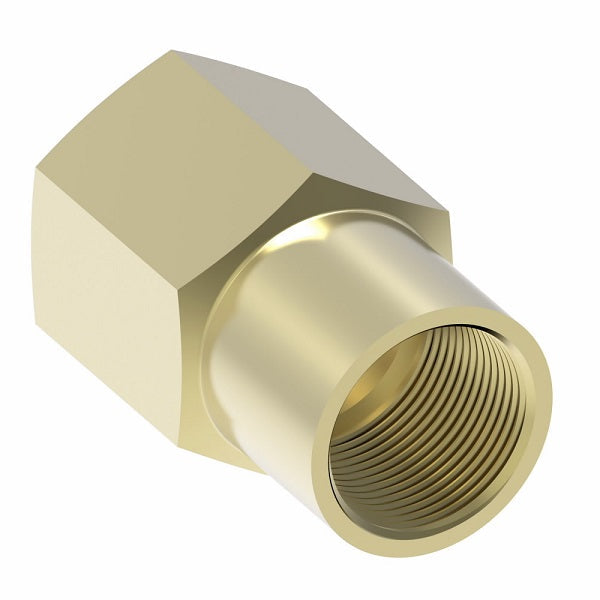

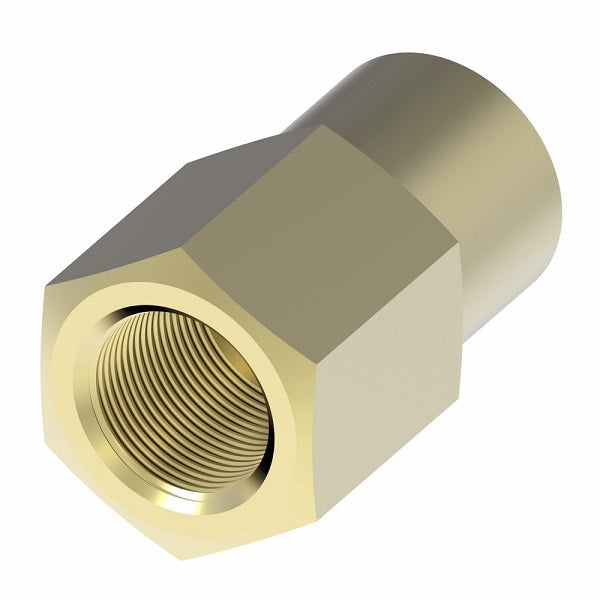

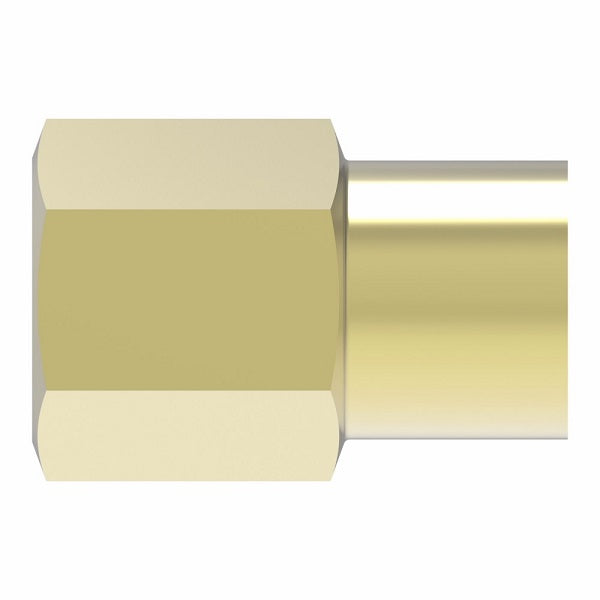

252X4 by Danfoss | Inverted Flare Female Connector | 1/8" Female NPTF x 1/4" Female SAE Inverted Flare | Brass
252X4 by Danfoss | Inverted Flare Female Connector | 1/8" Female NPTF x 1/4" Female SAE Inverted Flare | Brass
252X4 by Danfoss | Inverted Flare Female Connector | 1/8" Female NPTF x 1/4" Female SAE Inverted Flare | Brass
252X4 by Danfoss | Inverted Flare Female Connector | 1/8" Female NPTF x 1/4" Female SAE Inverted Flare | Brass

252X4 by Danfoss | Inverted Flare Female Connector | 1/8" Female NPTF x 1/4" Female SAE Inverted Flare | Brass

$6.06 - $6.06
$6.06
$6.06 - $6.06
$6.06

Aeroquip® by Danfoss
Inverted Flare Female Connector
Female NPTF x Female SAE Inverted Flare
Straight
Specifications for Variant SKU: 252X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF, 1/4in Female Inverted Flare
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040103
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Brass
Part Number 		Tube O.D. Female Pipe Thread Hex
C		 D L
252X3 3/16" 1/8" 1/2" 0.125" 0.75"
252X4 1/4" 1/8" 17/32" 0.188" 0.75"
252X5 5/16" 1/8" 19/32" 0.219" 0.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
