259-4721-6-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | 316 Stainless Steel
259-4721-6-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | 316 Stainless Steel
259-4721-6-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | 316 Stainless Steel
259-4721-6-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | 316 Stainless Steel

259-4721-6-6 Aeroquip by Danfoss | Female 37° JIC Swivel 100R2 Skive Style Reusable Hose Fitting | -06 Female 37° JIC Swivel x -06 Reusable Hose End | 316 Stainless Steel

$272.93 - $272.93
$272.93
$272.93 - $272.93
$272.93

Aeroquip® by Danfoss

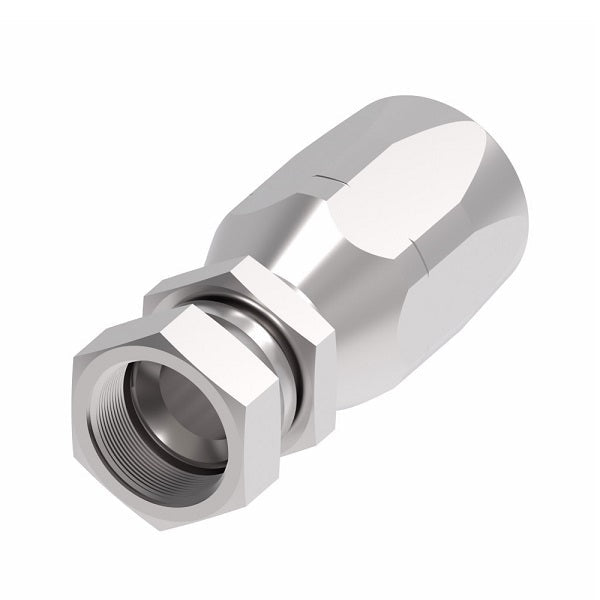

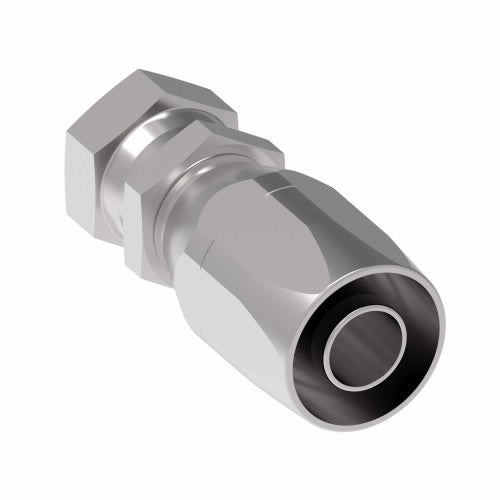

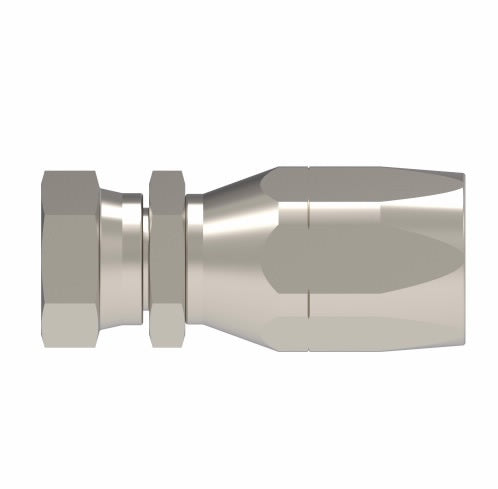

100R2 Skive Style Reusable Hose Fitting - Female 37° JIC Swivel - Straight
(316 Stainless Steel)

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 259-4721-6-6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Female JIC, 3/8in Reusable Hose End
Material(s): 316 Stainless Steel
Special Properties: Swivel
Compatible with the following Series: 2766 Series  |   2781 Series  |   FC195 Series
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
316 Stainless Steel
Part Number 		Hose Size Thread A D EØ
259-4721-4-4 -04 7/16-20 2.64" 1.41" 0.17"
259-4721-6-6 -06 9/16-18 2.98" 1.51" 0.26"
259-4721-8-6 -06 3/4-16 3.11" 1.64" 0.31"
259-4721-8-8 -08 3/4-16 3.20" 1.68" 0.39"
259-4721-10-8 -08 7/8-14 3.31" 1.80" 0.39"
259-4721-10 -10 7/8-14 3.40" 1.85" 0.50"
259-4721-12 -12 1-1/16-12 3.86" 1.99" 0.61"
259-4721-16 -16 1-5/16-12 4.48" 2.42" 0.82"
