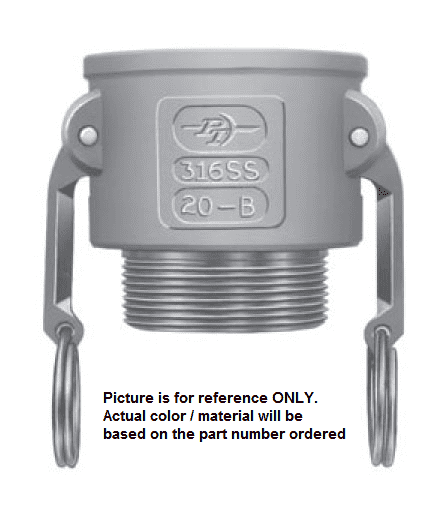

6038000053 (25BFH) by PT-Coupling | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HB | Buna-N Seal

6038000053 (25BFH) by PT-Coupling | 2-1/2" Coupler x 2-1/2" Male Fire Hose (NH) Thread | Aluminum/HB | Buna-N Seal

Save $7.72 Save $7.72
$69.44
$69.44 - $69.44
$69.44
$61.72
$61.72 - $61.72
$61.72
Specifications for Variant SKU: 6038000053 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Male NST
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Part BFH - Coupler x Male Fire Hose (NH) Thread - Aluminum/HB
Features & Applications:
  • HB cam arms are made of Brass.
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Comes Standard with Buna N cam gasket.
  • Made in the USA
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Item # Coupler
Size		 Male Fire Hose
Thread (NH)
Size		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Outside
Diameter
(B)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Allowable
Working Press.
(PSI)*
25BFH 6038000053 2-1/2" 2-1/2" 8.03" 3.63" 4.43" 2.18" 2.38" 200 PSI
30BFH 6038000054 3" 3" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
30X25BFH 6038000055 3" 2-1/2" 9.56" 3.82" 5.46" 2.27" 2.88" 200 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
