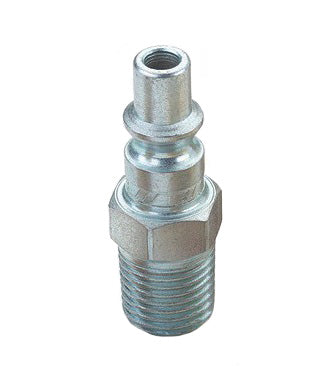

2608 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel

2608 Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series / 210 Series | 1/4" Male NPTF x 1/4" Body Size | Plug | Steel

$2.99 - $2.99
$2.99
$2.99 - $2.99
$2.99

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | Auto-Flo 23 Series

Quick Disconnect for Pneumatic Applications.

Danfoss' Auto-Flo 23/24 Series of pneumatic couplings were designed with high flow and easy automatic connection for compressed air in mind.

The universal design makes the Auto-Flo an extremely flexible coupling series.
Specifications for Variant SKU: 2608 Danfoss
Brand: Hansen
Series: Auto-Flo 23 Series / 210 Series
Shape (Orientation): Straight
Material(s): Steel
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
  • Sleeve guard protects against accidental disconnection.
Applications & Markets:
  • General Pneumatics
  • Air Tools
  • Construction
Materials:
  • Standard body material: Brass
  • Standard seal material: Buna-N
Specifications:
  • Auto-Flo 23 is the first automatic universal quick disconnect coupling designed to operate with Industrial, ARO 210 and Tru-Flate Interchange plugs/males.
Series Max. Operating Pressure Min. Burst Pressure Rated Flow
Auto-Flo 23 10 bar 150 psi 40 bar 600 psi 792 lpm 28 gpm
Auto-Flo 24 10 bar 150 psi 40 bar 600 psi 1,274 lpm 45 gpm
Interchangeability
Auto-Flo 23 Auto-Flo 24
US Industrial Interchange
ISO 6150 Series B		 (Euro Interchange)
A-A-59439
(former MIL-C-4109)		 CEJN 320
Tru-Flate Interchange
ARO 210 Interchange		 RECTUS 25
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
Plug/Male (ARO 210)
(Figure 3)
Plug/Male (Tru-Flate)
(Figure 4)
Auto-Flo 23 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
B23AS25M Socket/Female 1/4" 1/4" 1/4-18 Male NPTF Brass 1 2.23"
(56.64mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS25MBST Socket/Female 1/4" 1/4" 1/4-19 Male BSPT Brass 1 2.23"
(56.64mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
B23AS37M Socket/Female 1/4" 3/8" 3/8-18 Male NPTF Brass 1 2.23"
(56.64mm)		 0.96"
(24.38mm)		 0.81"
(20.57mm)
Auto-Flo 23 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)
10C* Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
10G** Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
12E Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 1.59"
(40.39mm)		 0.58"
(14.73mm)		 0.50"
(12.70mm)
12G** Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 2 2.38"
(60.45mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
14 Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 2 1.75"
(44.45mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
14G** Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 2 2.53"
(64.26mm)		 0.77"
(19.56mm)		 0.69"
(17.53mm)
B10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Brass 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)
LL10 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Stainless Steel 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)
2607 Plug/Male 1/4" 1/8" 1/8-27 Male NPTF Steel 3 1.42"
(36.07mm)		 0.58"
(14.73mm)		 0.50"
(12.70mm)
2608 Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 3 1.68"
(42.67mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
2608B Plug/Male 1/4" 1/4" 1/4-19 Male BSPT Steel 3 1.68"
(42.67mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
20AP37M Plug/Male 1/4" 3/8" 3/8-18 Male NPTF Steel 3 1.68"
(42.67mm)		 0.79"
(20.07mm)		 0.69"
(17.53mm)
21AP25M Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Steel 4 1.65"
(41.91mm)		 0.65"
(16.51mm)		 0.56"
(14.22mm)
10NK Plug/Male 1/4" 1/4" 1/4-18 Male NPTF Nickel Plated Steel 2 1.75"
(44.45mm)		 0.62"
(15.75mm)		 0.56"
(14.22mm)

* With Ball Check
** With Bleeder Ball Check - Reduces Hose Whip
